Rover 400 Body Repair Manual (1995-2000)06 · Panel repairs
06 · General

Front side frame (page 3 of 3)

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Repairs
Panel repairsFront side frame · page 3 of 3
Diagram

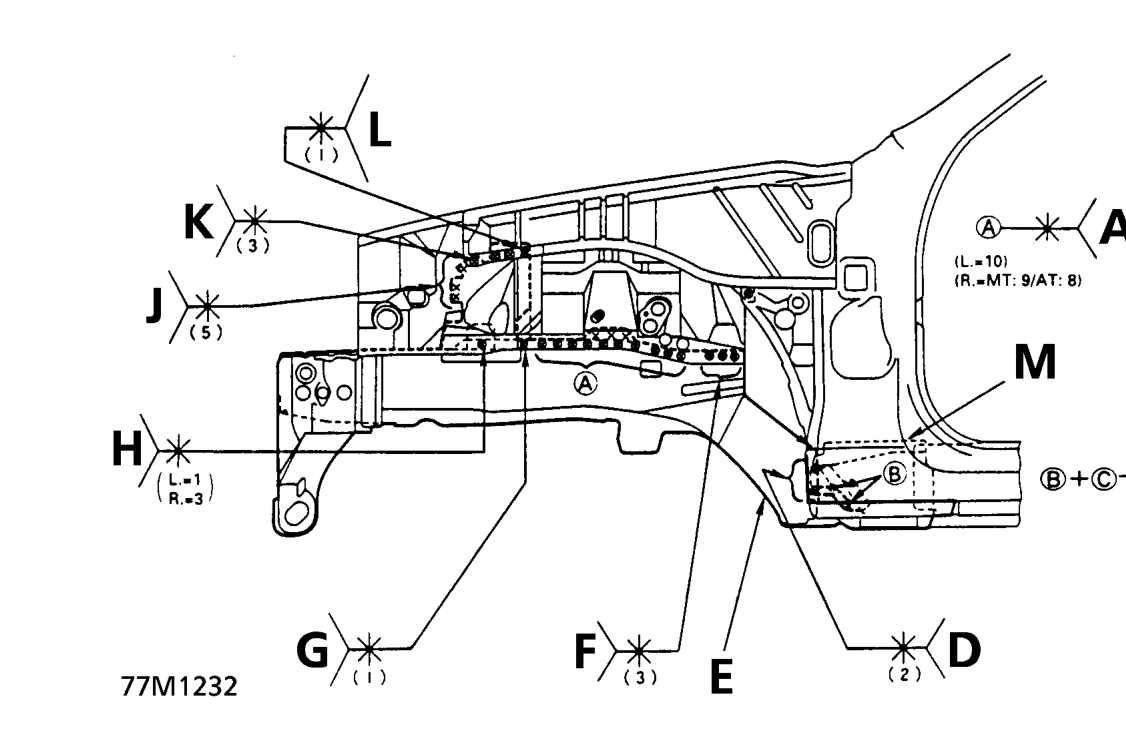

A. Front side frame and spring housing (include 3 points of 2 plate welding) B. Rear support stiffener (outrigger side) C. Inside sill extension D. Front side outrigger, front pillar stiffener and outer panel E. Replace the front side frame and front side outrigger as an assembly F. Front side frame and spring housing G. Front side frame, spring housing and front inner wing H. Front side frame and front inner wing J. Engine support bracket and front inner wing (include D in 77M1230A) K. Engine support bracket, front inner wing and spring housing L. Engine support stiffener, front inner wing, spring housing and inner wing extension (4 plate welding) M. Leave the inside sill extension attached to the dashboard lower side
