Rover 400 Body Repair Manual (1995-2000)06 · Panel repairs
06 · General

Front side frame (page 2 of 3)

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Repairs
Panel repairsFront side frame · page 2 of 3

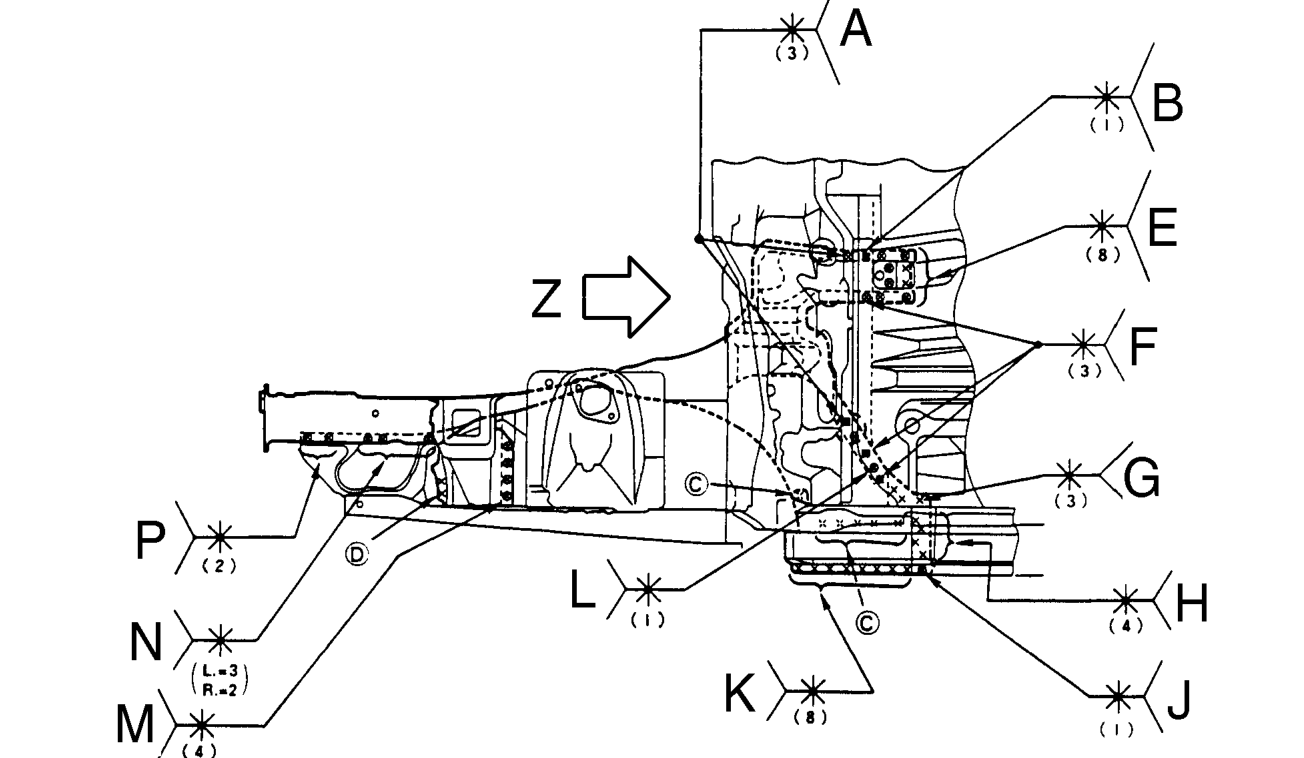

Diagram

A. Front side outrigger, dashboard lower and dashboard cross member (include 1 point of 4 plate welding) B. Front side outrigger, dashboard lower, front centre floor and front floor (4 plate welding) C. Rear support stiffener (outrigger side) and inside sill extension D. See item J in Figure 77M1232 E. Front side outrigger, front centre floor and front floor (include 2 points of 2 plate welding) F. Front side outrigger, dashboard lower and front floor (include 1 point of 3 plate welding) G. Front side outrigger and front floor H. Front side outrigger and inside sill J. Front side outrigger, inside sill and outer panel K. Front side outrigger and outer panel L. Front side outrigger and dashboard lower M. Engine support bracket, front inner wing and spring housing N. Front side frame, back plate and front inner wing P. Backplate extension, front side frame and front inner wing
