Replacement (page 4 of 4)

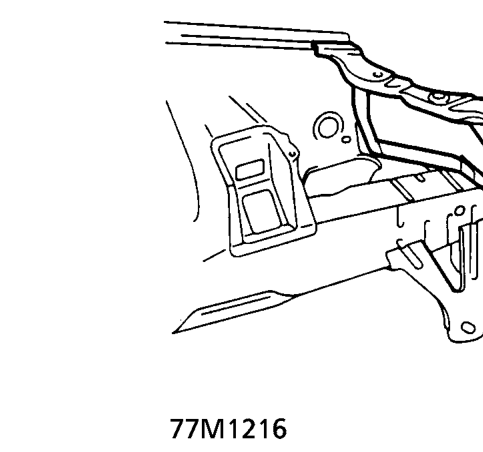

11. Finish the welded area. Use a hammer and dolly to even out the front inner wing and front side frame flanges for a close fit with the surface of the front bulkhead.

12. Apply the undercoat.
13. Attach the front wing.
14. Lower the body.
15. Tighten the wheel nuts to 110 Nm.
16. Apply the paint.

WARNING: Ventilate when spraying paint. Most paint contains substances that are harmful if inhaled or swallowed. • Read the paint label before opening the paint container. • Avoid contact with skin. Wear an approved respirator, gloves, eye protection and appropriate clothing when painting. • Paint is flammable. Store it in a safe place, and keep it away from sparks, flames or cigarettes.

17. Install the related parts.
18. Inspect, check, and make adjustments.

• Adjust the headlight aim.
• Check that the electrical components light up and operate properly.
• Replenish radiator coolant and inspect for leaks.
