Replacement (page 2 of 4)

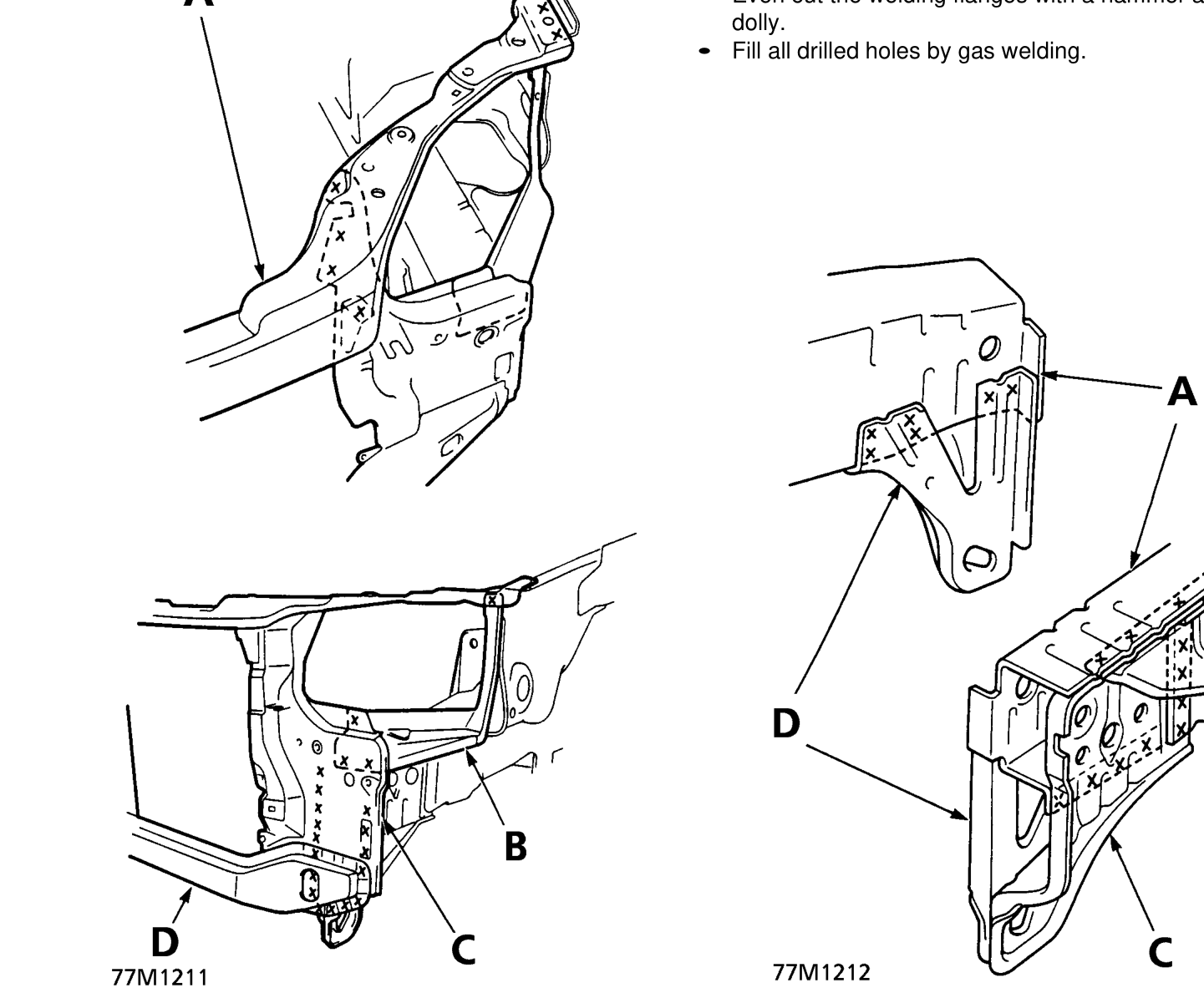

5. Mould the damaged related parts.

• Replace the tie down bracket and backplate extension as an assembly if necessary.
• Use a hammer and dolly to mould the damaged areas of the front inner wing and front side frame.
• Even out the welding flanges with a hammer and

dolly.

• Fill all drilled holes by gas welding.

A. Bulkhead upper frame B. Bulkhead side stay C. Front side bulkhead D. Front lower cross member

A. Front side frame B. Backplate C. Backplate extension D. Tie down bracket
