Engine management system - EDCInjection pump - air conditioning · page 2 of 5

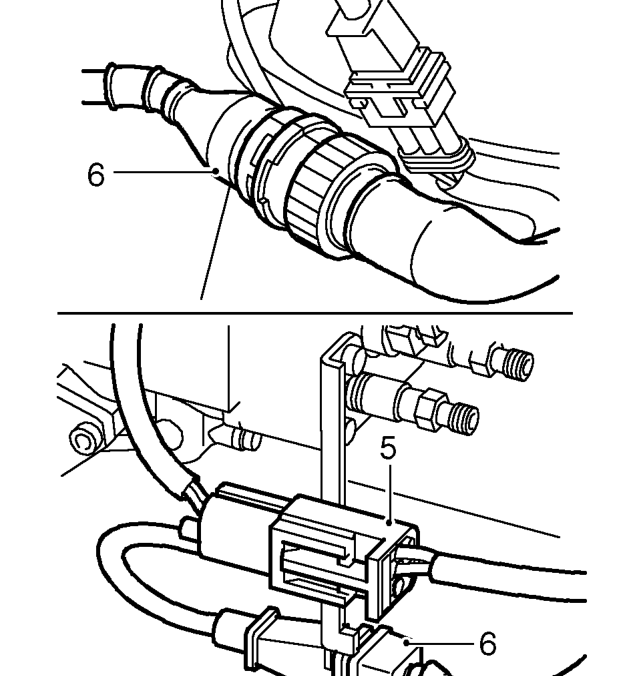

5. Release fuel cut-off solenoid multiplug from bracket and disconnect multiplug.
6. Disconnect 2 injection pump multiplugs

7. Remove nut securing top hose clip to bracket.
8. Release clip and move top hose aside.

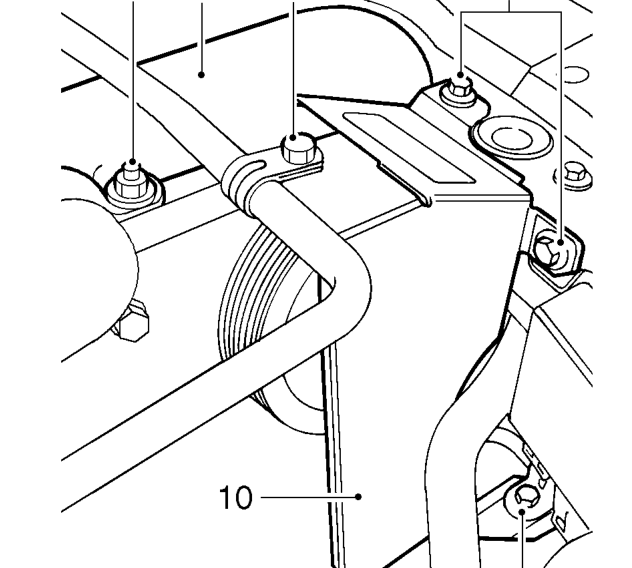

9. Remove bolt securing air conditioning pipe clip to PAS pump pulley shield.
10. Remove 1 and loosen 2 bolts securing PAS pulley shield and remove shield.

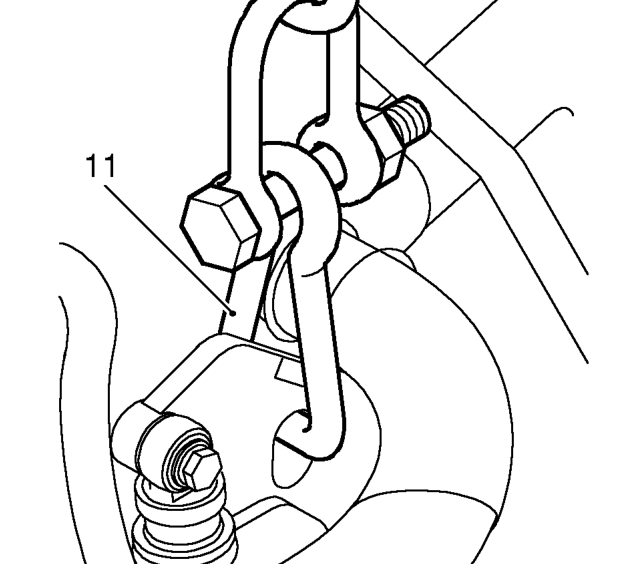

11. Fit lifting eye to PAS pump bracket.
12. Attach lifting hoist to lifting eye and take weight of power unit without exerting load on mountings.
