AIR CONDITIONING

REPAIRS

82-7

Compressor - KV6

$% 82.10.20

Remove

1. Disconnect battery earth lead.
2. Recover refrigerant from A/C system.



 +

 AIR CONDITIONING, REFRIGERANT

RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery -
recycling and recharge.

3. Remove underbelly panel.



 +

 EXTERIOR FITTINGS, REPAIRS,

Panel - underbelly.

4. Remove RH front road wheel.

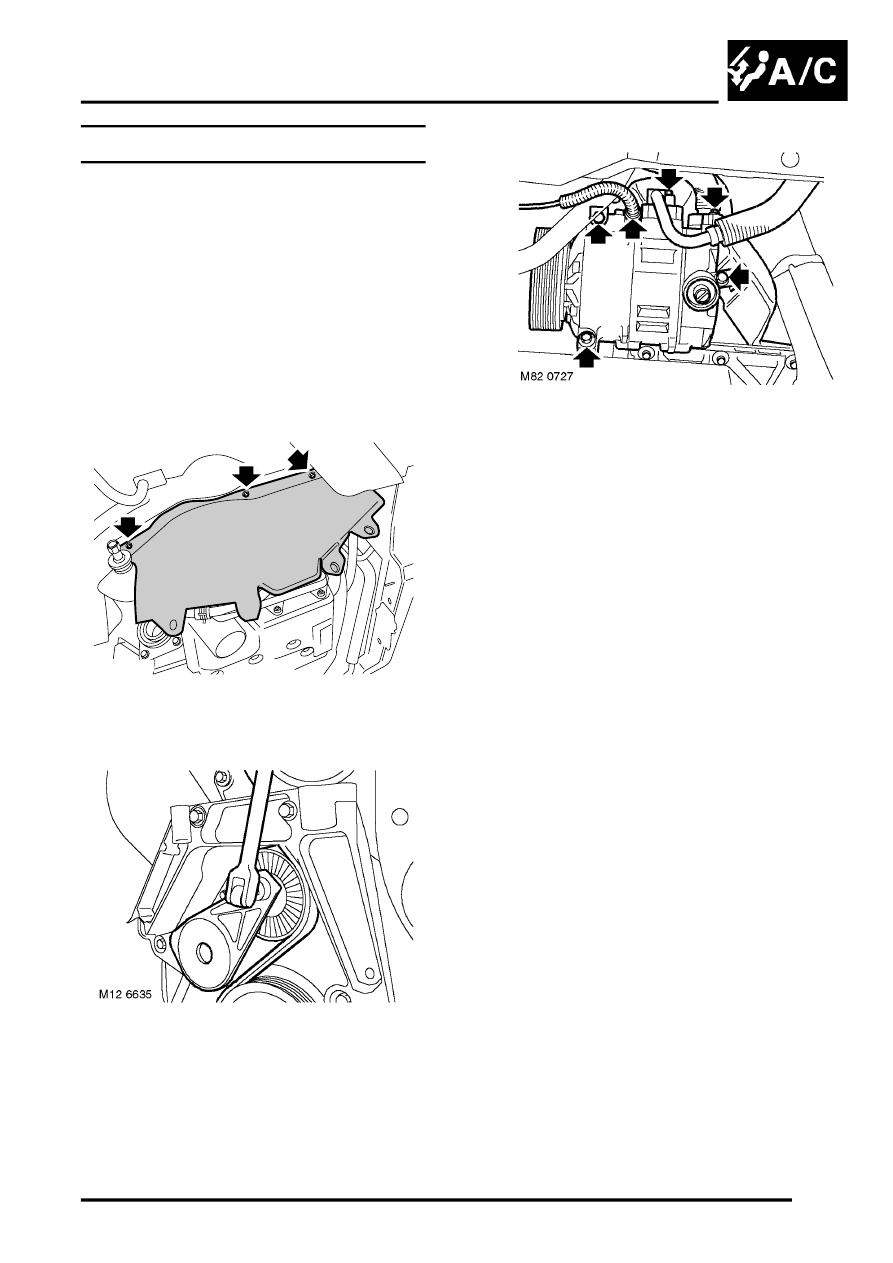

5. Remove 3 bolts securing RH splash shield to

body and remove shield.

6. Using a 3/8” square drive socket bar, raise

ancillary drive belt tensioner and release drive
belt from A/C compressor pulley.

7. Remove 2 bolts securing high and low pressure

pipes to compressor. Release pipes from
compressor, remove and discard 'O' rings.

CAUTION: Before disconnecting or
removing components, ensure the
immediate area around joint faces and
connections are clean. Plug open
connections to prevent contamination.

8. Disconnect multiplug from compressor.
9. Note fitted position of heat shield on

compressor and remove 3 bolts securing
compressor to front mounting plate and
cylinder block. Remove compressor and heat
shield.

M12 6614
