Range Rover Classic
86
ELECTRICAL
8
REPAIR
HEADLAMP ALIGNMENT
Service repair no - 86.40.17
Headlamp beam setting should only be carried out by
qualified personnel using suitable beam setting
equipment, for example the Lucas Beamtester.

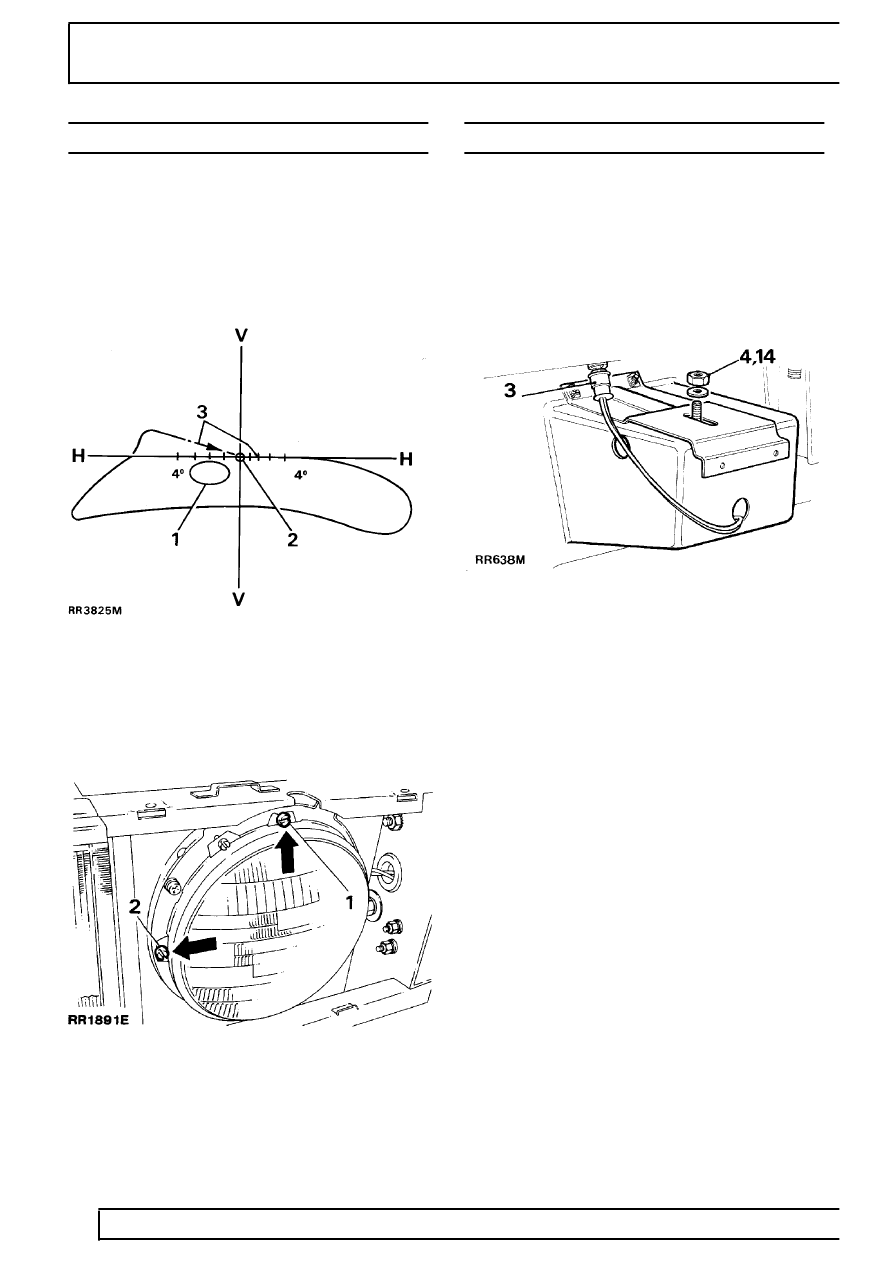

RR3825M shows right hand drive beam pattern, left
hand drive is symetrically opposite.
Guide to beam pattern:
1. Maximum intensity zone.
2. Beam aim kink point.
3. Aiming datum lines.
Adjust
1. Turn top adjusting screw anti-clockwise to lower
beam, clockwise to raise beam.
2. Turn side adjusting screw anti-clockwise to move
beam to left, clockwise to move beam to right.
AUXILIARY DRIVING LAMP
Service repair no - 86.40.96
Bulb replacement
1. Disconnect battery negative lead.
2. Securing nut is located beneath front bumper,
adjacent to front body fixing. Access to lamp is
gained through front wheel arch.
3. Disconnect electrical plug.
4. Remove single nut and washer.
5. From front of vehicle, manoeuvre lamp. Remove
lamp from spoiler opening.
6. Remove two screws securing cover to rear of
lamp.
7. Withdraw cover.
8. Disconnect lucar connector.
9. Release spring clip securing bulb to lamp unit.
10. Remove bulb.
