Page 747
background image

86

ELECTRICAL

36

REPAIR

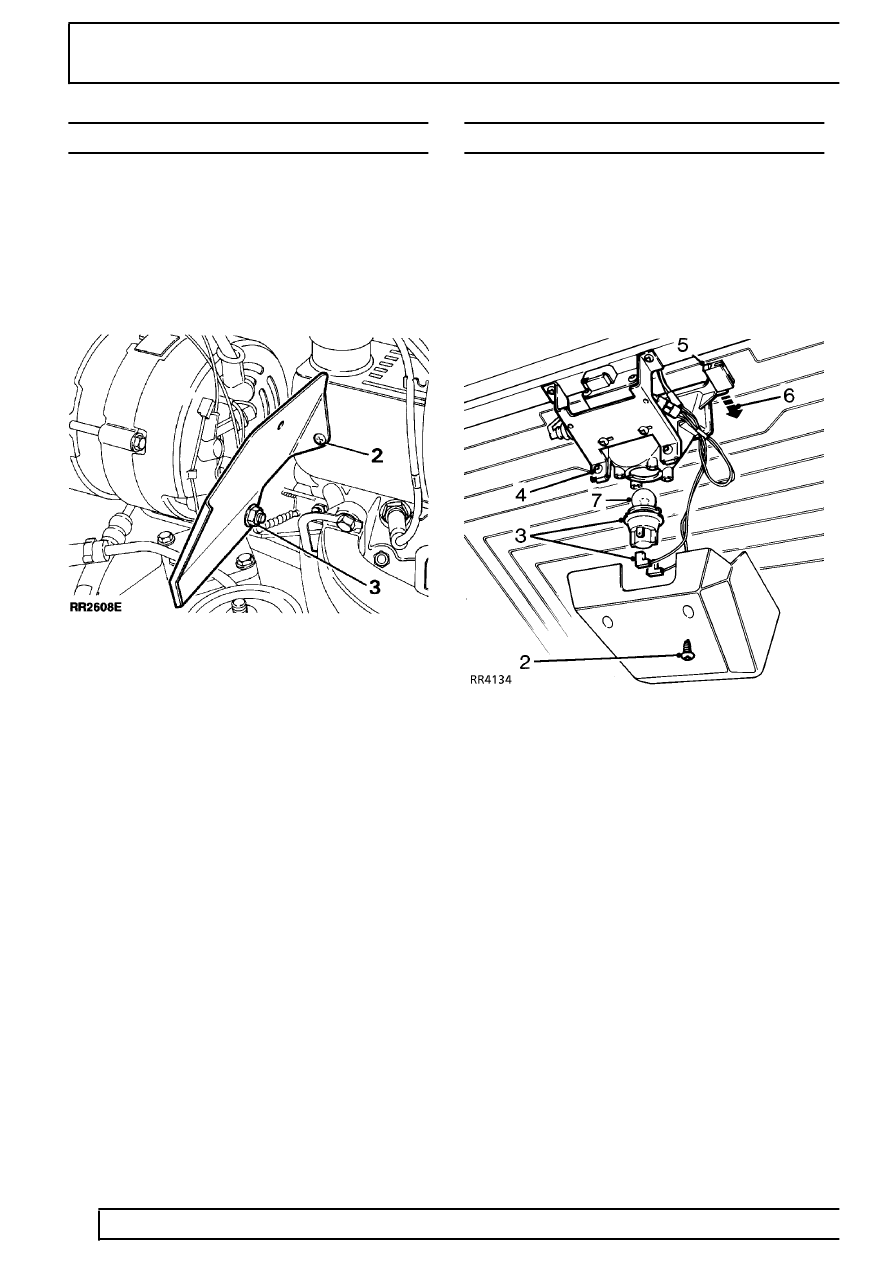

A.C. GENERATOR HEAT SHIELD

Remove

1. Disconnect battery negative lead.
2. Remove fixing screw.
3. Remove nut from A.C. generator rear mounting

bolt, remove heat shield.

Refit

4. Reverse removal procedure.

HIGH LEVEL STOP LAMP

Service repair no - 86.41.35

Includes bulb renewal
Service repair no - 86.41.34

Remove

1. Disconnect battery negative lead.

2. Remove two cover retaining screws. Remove

cover.

3. Disconnect electrical leads to bulb holder.

Remove bulbholder and bulb by twisting anti-
clockwise.

4. Remove two screws, mounting plate to stop

lamp.

5. Observe position of stop lamp on rear screen.

Carefully release tabs on stop lamp from rear
screen mountings.

6. Remove stop lamp.
7. Renew bulb if necessary.

Refit

8. Reverse removal procedure.
