Range Rover Classic
ELECTRICAL
7
REPAIR
HEADLAMP ASSEMBLY/BULB REPLACEMENT
Service repair no - 86.40.02
Remove
1. Disconnect battery negative lead.
2. Remove radiator grille.
See CHASSIS AND
BODY, Repair, Radiator Grille

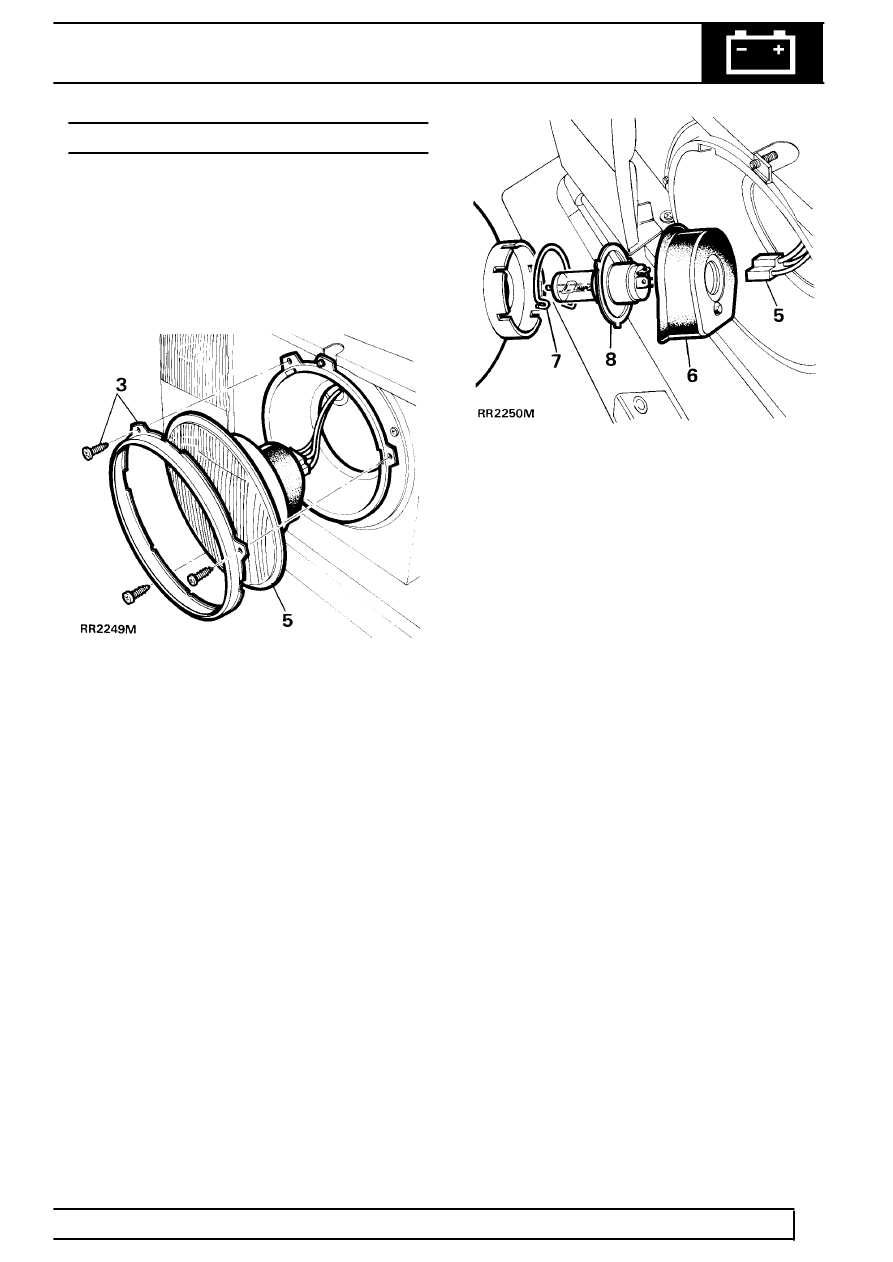

3. Remove three screws and headlamp retaining
rim.
4. DO NOT disturb beam adjusting screws.
5. Withdraw headlamp unit. Disconnect wiring plug
from rear of unit.
6. Remove rubber dust cover.
7. Release retaining clip, remove bulb
8. Remove three securing screws, pry away
grommet. Remove headlamp bowl.
Refit
9. Reverse removal procedure.
DO NOT touch quartz envelope of bulb. Gently
clean using methylated spirits if contact does
occur.
