Range Rover Classic
ELECTRICAL
49
REPAIR

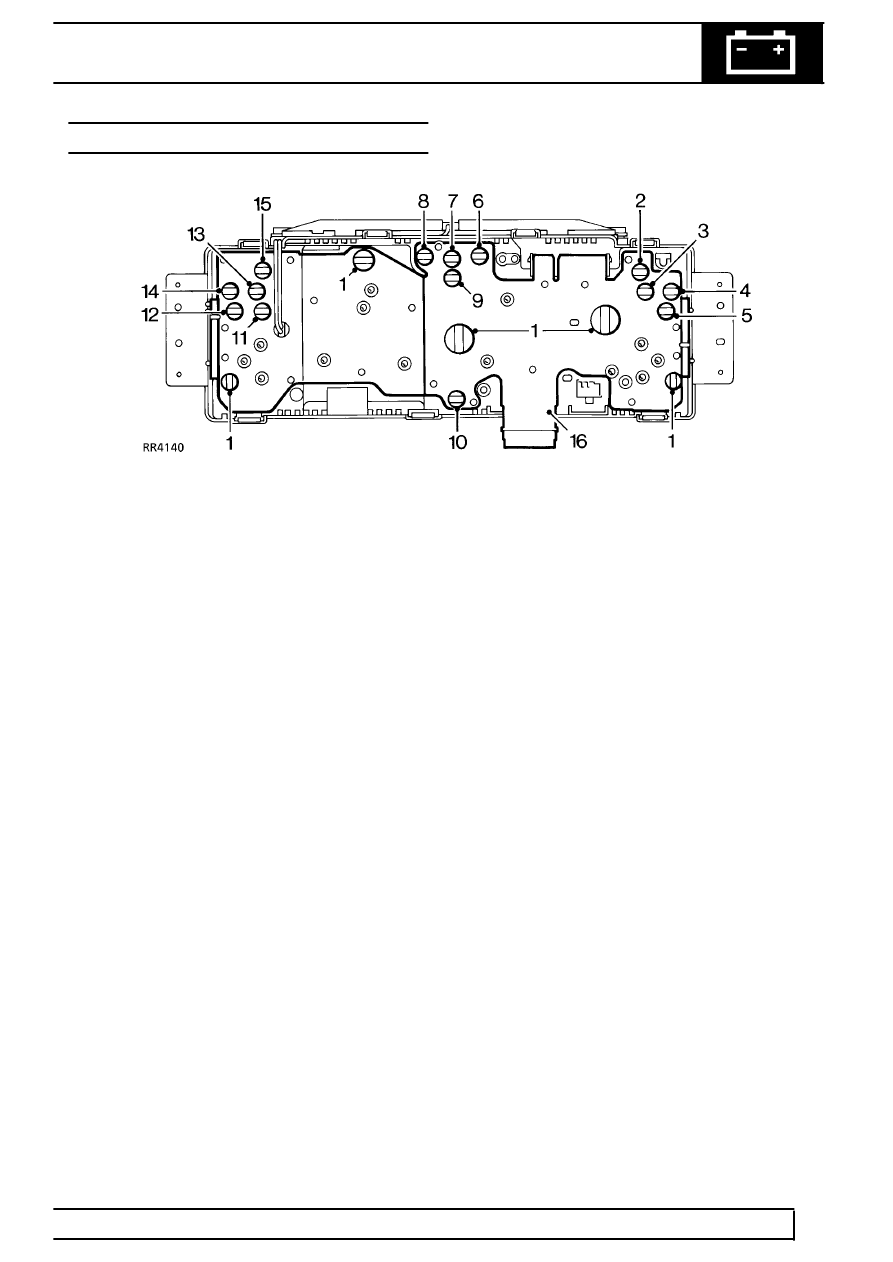

PRINTED CIRCUIT AND WARNING LIGHTS
1. Panel illumination bulbs
2. Transmission oil temperature warning lamp bulb
3. Hazard warning lamp bulb
4. Check engine warning lamp bulb
5. Handbrake/brake fluid warning lamp bulb
6. ABS warning lamp bulb
7. Headlamp main beam warning lamp bulb
8. Trailer direction warning lamp bulb
9. Direction indicator warning lamp bulb
10. Air suspension warning lamp bulb
11. Ignition/no charge warning lamp bulb
12. Seat belt warning lamp bulb
13. Not used
14. Traction control warning lamp bulb
15. Diesel heater plug warning lamp bulb (if fitted)
16. Main printed circuit
