AUXILIARY SWITCHES AND BULBS
Service repair no - 86.45.49 - Switches
Service repair no - 86.45.29 - Bulbs

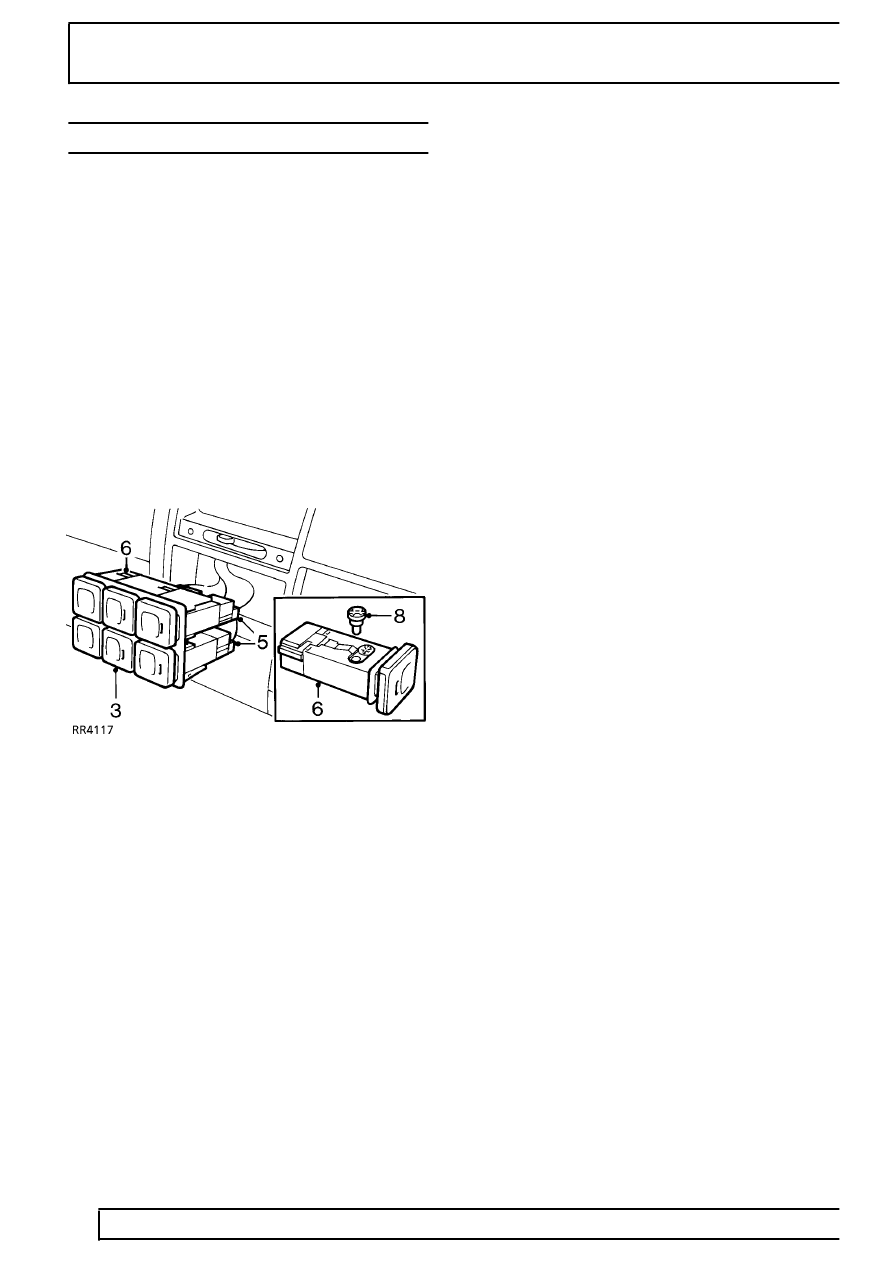

The auxiliary switch panel contains up to six switches
depending on vehicle specification. Each switch
incorporates integral symbols for identification.
Unused switch openings are fitted with blank covers,
which are removable, to facilitate fitting extra switches
if required.
The symbols are illuminated by two bulbs which
become operational when vehicle lights are on.
Switch replacement
Remove
1. Disconnect battery negative lead.
2. Remove air suspension switch panel.
See Air
Suspension Switches and Bulbs
3. Carefully prise auxiliary switch panel out of
fascia.
4. Withdraw switch panel as far as electrical leads
will permit.
5. Noting their fitted position, disconnect
multiplug(s) from the switch(es).
6. Depress small retaining lugs on top and bottom
of switch and push switch(es) through front of
switch surround.
Bulb replacement
7. Identify bulb to be replaced and remove
appropriate switch.
8. Rotate bulb holder 90 deg. and withdraw it from
switch; discard bulb holder and bulb.
Refit
9. Reverse removal procedure.
