Range Rover Classic
ELECTRICAL
29
REPAIR
FUEL FILLER FLAP ACTUATOR UNIT
Service repair no - 86.26.16
Remove
1. Remove sub-woofer assembly.
See
Sub-Woofer Box

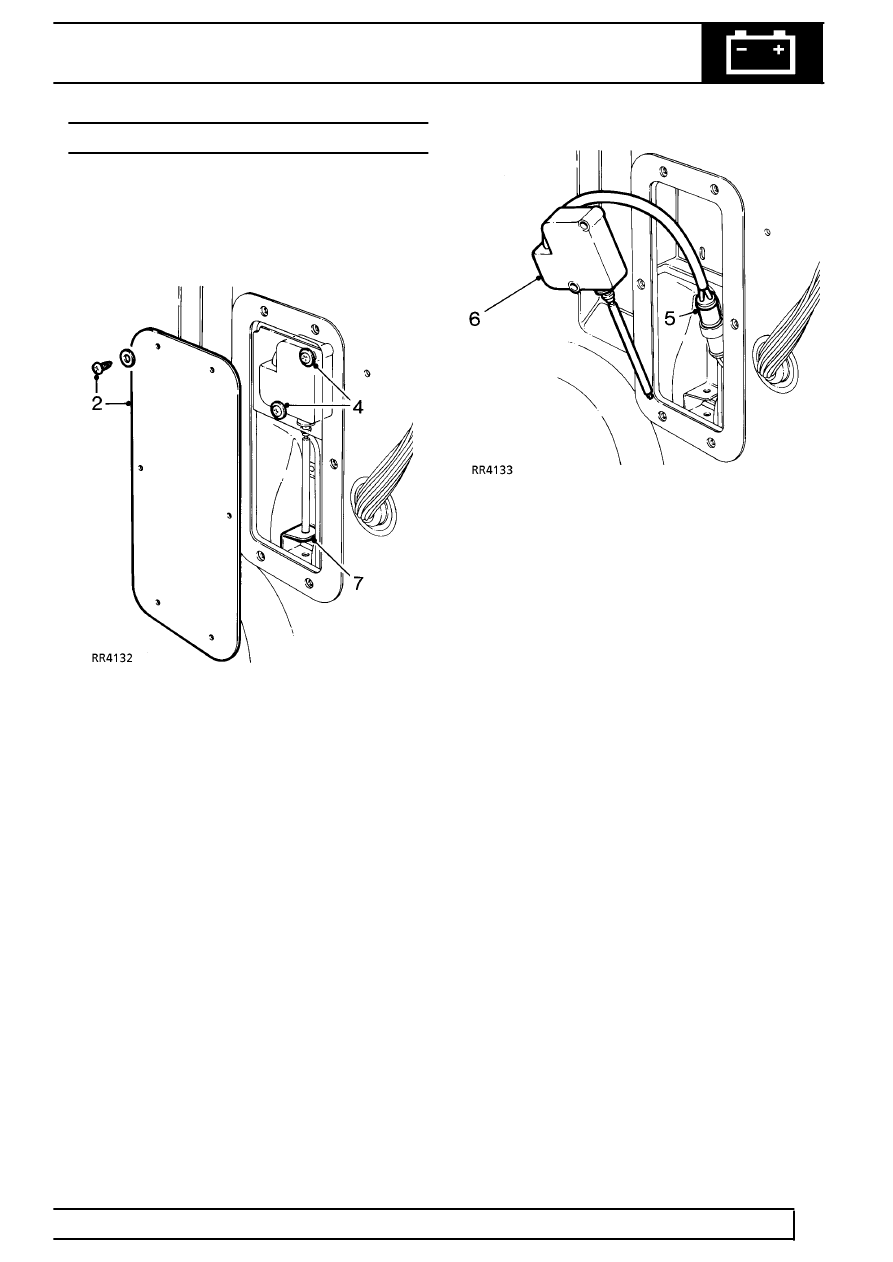

2. Remove six screws to withdraw closure panel,
situated in tool stowage area.
3. Ensure that actuator is in unlocked position and
fuel filler flap is open.
4. Release two screws and manoeuvre actuator
unit clear of its mounting.
5. Disconnect wiring plug.
6. Withdraw actuator.
Refit
7. Reverse removal procedure. Actuator mounting
holes in body are elongated. Adjust position of
actuator to ensure that rod will pass through
guide brackets without fouling.
