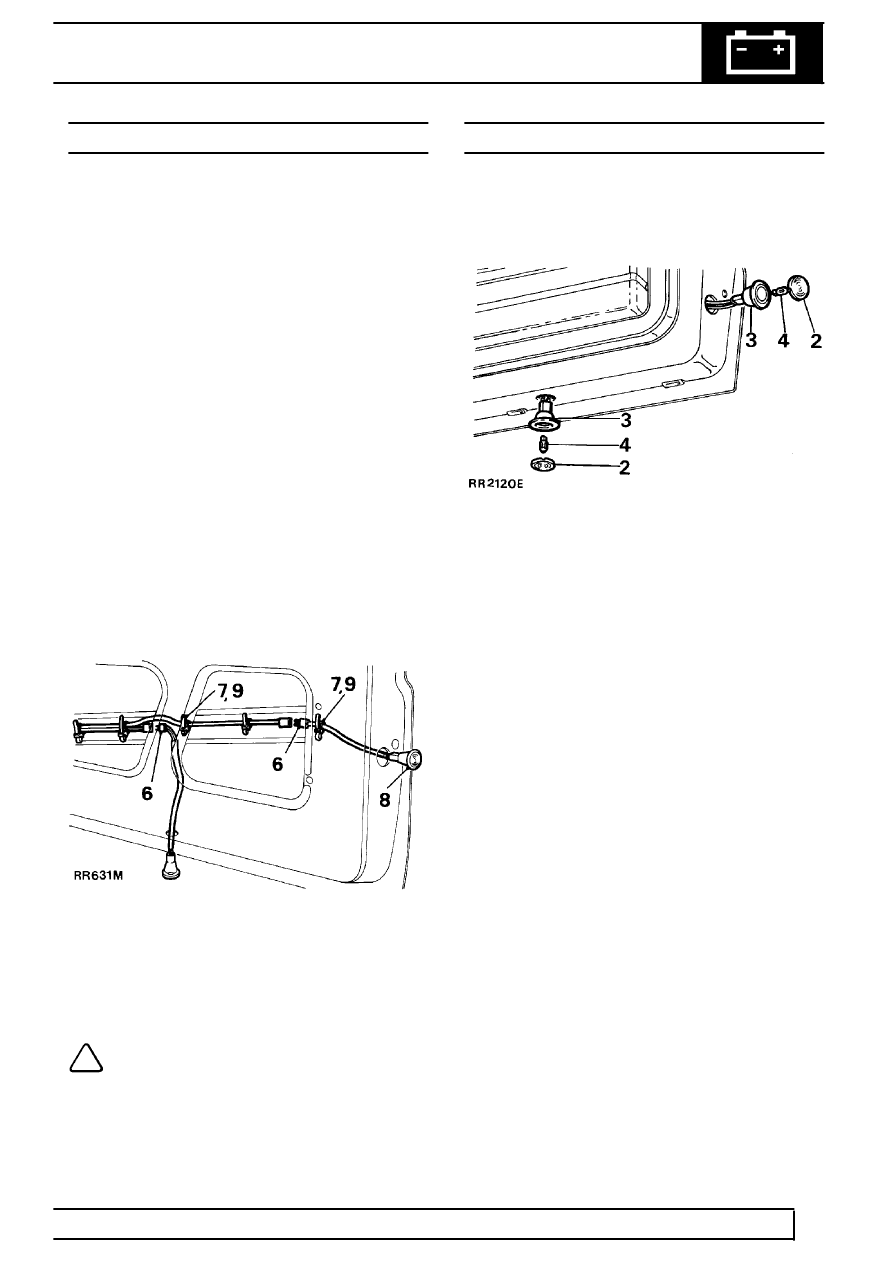

DOOR EDGE LAMPS / PUDDLE LAMPS
Service repair no - 86.40.38
Incorporated into front door assemblies are door edge
lamps and puddle lamps, located on door edge and
bottom of door. The lamps are activated by courtesy
light switches when either front door is opened and
will immediately switch off when both doors are
closed.
Remove
1. Ensure side door glass is fully closed.
2. Disconnect battery negative lead.
3. Remove interior door handle and arm rest/door
pull from door.
4. Carefully release interior door trim pad from
inner door panel.
5. Peel back lower half of plastic vapour barrier.
6. Disconnect electrical connectors within door,
accessible through lower centre and outer
openings of inner door panel.
7. Release door edge lamp electrical leads from
retaining clips.
8. Remove lens and pry lamps out of door and
withdraw electrical leads.
Refit
9. Reverse removal procedure.
NOTE: Ensure door lamp wiring harness is
securely clipped to lower stiffener plate
within door to prevent damage occurring
to electrical leads when door glass is in its lowest
position.
DOOR EDGE LAMPS/PUDDLE LAMPS BULB
Service repair no - 86.40.47
1. Disconnect battery negative lead.
2. Carefully pry out lamp lens.
3. Withdraw lamp body from door ONLY as far as
electrical leads will permit.
4. Pull bulb from holder.
Refit
5. Fit new bulb, refit lamp lens.
6. Push lamp into door.
