14 · Steering & suspension

Upper arm - front (page 2 of 3)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionUpper arm - front · page 2 of 3
Diagram

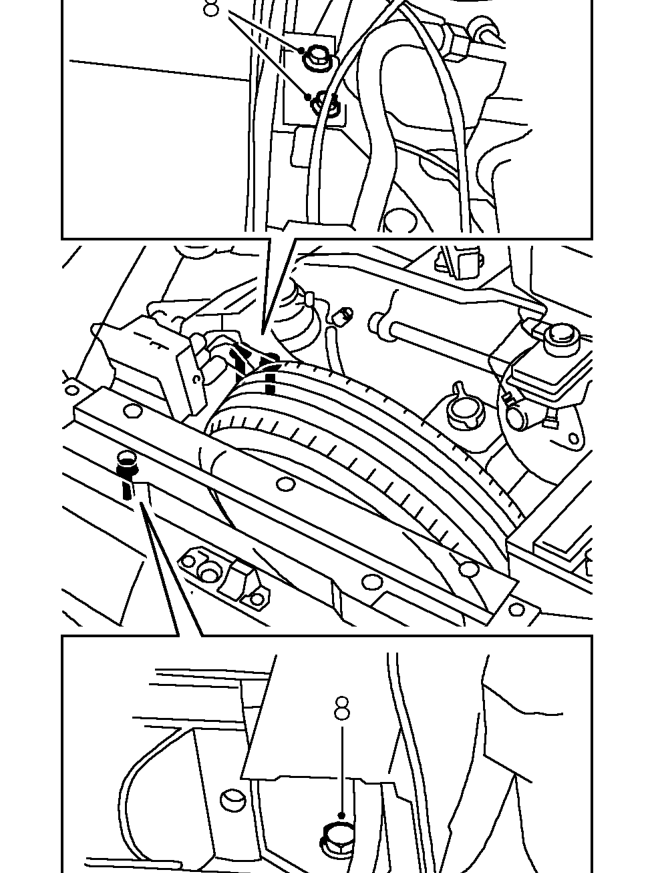

  1. Remove 3 bolts securing front subframe box section.
  2. Remove box section.
Remove box section.

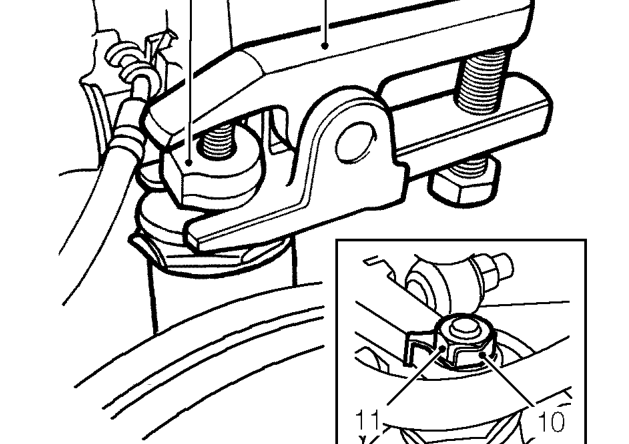

  1. Bend tab washer from ball joint nut.
  2. Remove ball joint nut.
  3. Break ball joint using tool 18G 1584.
Break ball joint using tool 18G 1584.

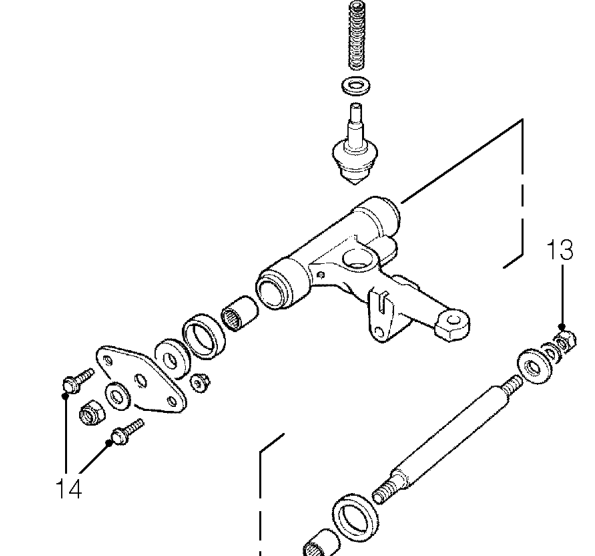

  1. Remove nut securing rear most end of upper arm pivot shaft.
  2. Remove 2 bolts securing pivot shaft retaining plate.

NOTE: Inner bolt has captive nut.
