Valve stem oil seal (page 2 of 2)

Make

Rover

Model

200 Workshop Manual

Year

1995–1999

Section

Repairs

Engine - K16Valve stem oil seal · page 2 of 2

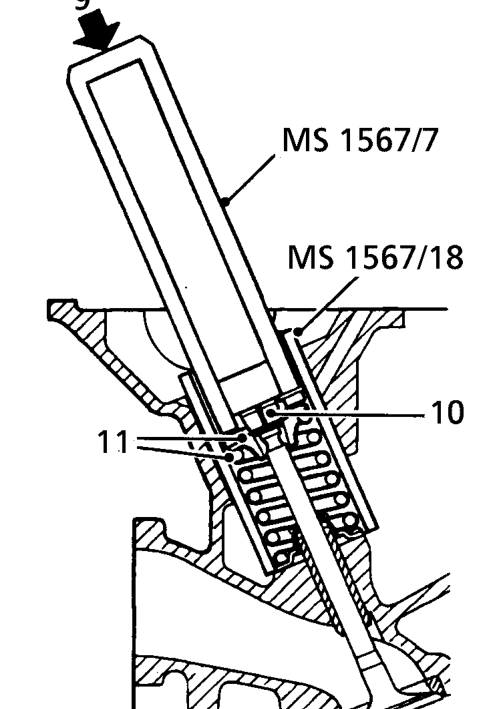

8. Fit tool MS 1657/18 and tool MS 1567/7 to valve spring cap.
9. Strike head of tool firmly with hammer to release valve spring collets.
10. Remove collets from magnetic end of tool.
11. Remove valve spring cap and spring.

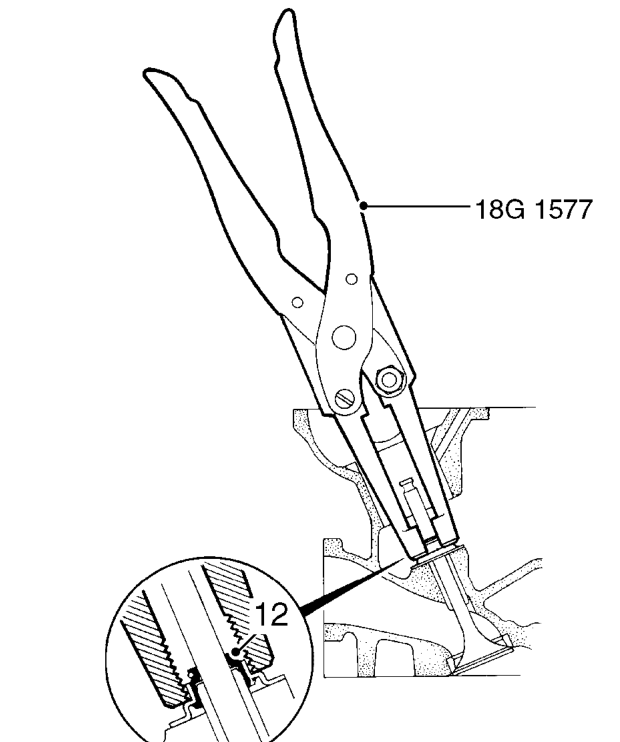

12. Use tool 18G 1577 to remove valve stem oil seal.
13. Repeat operations to remove second exhaust valve oil seal.

06 Engine
