Engine - L SeriesCamshaft front oil seal

CAMSHAFT FRONT OIL SEAL

Service repair no - 12.13.05

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove RH front road wheel.
  2. Disconnect battery earth lead.
  3. Remove camshaft timing belt upper cover. See this section.
Camshaft front oil seal – Remove camshaft timing belt upper cover. See this section.

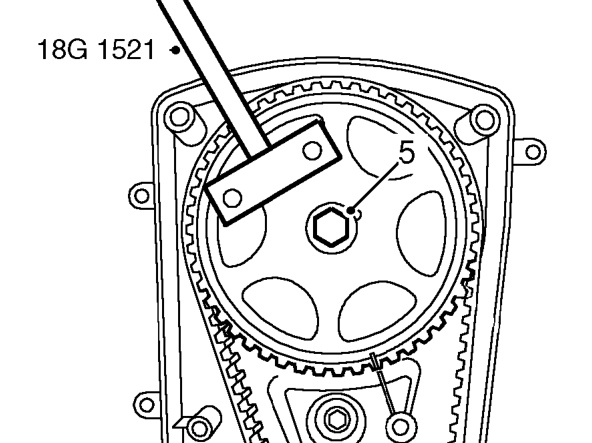

  1. Restrain camshaft gear using tool 18G 1521 and loosen but do not remove camshaft gear retaining bolt.
Camshaft front oil seal – Restrain camshaft gear using tool 18G 1521 and loosen but do not remove camshaft gear reta

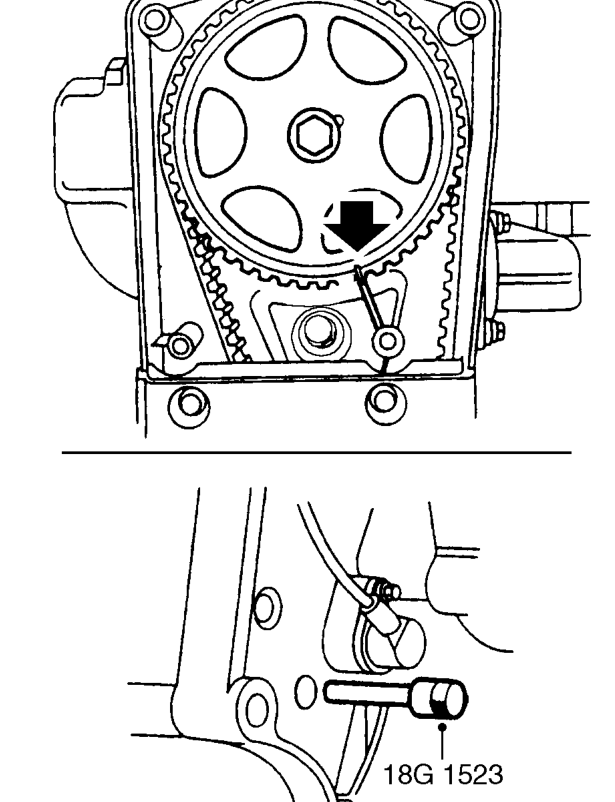

  1. Insert timing pin 18G 1523 through hole in gearbox mounting plate, hold pin in contact with flywheel.
  2. Using assistance, rotate crankshaft clockwise until timing pin 18G 1523 can be felt to enter hole in crankshaft.

CAUTION: Never use the camshaft gear, gear retaining bolt or timing belt to rotate the crankshaft.

  1. Check that timing marks on camshaft gear and back cover are aligned.
