Models with air conditioning fitted

Models with air conditioning fitted

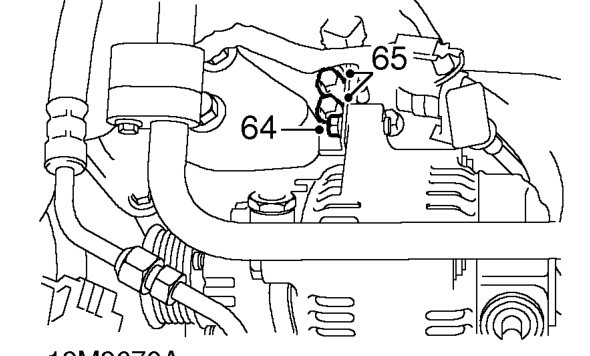

  1. Remove bolt securing alternator to top mounting bracket.
  2. Remove 2 bolts securing mounting bracket to coolant outlet elbow. Remove mounting bracket.

All models

All models – Remove 2 bolts securing mounting bracket to coolant outlet elbow. Remove mounting bracket.

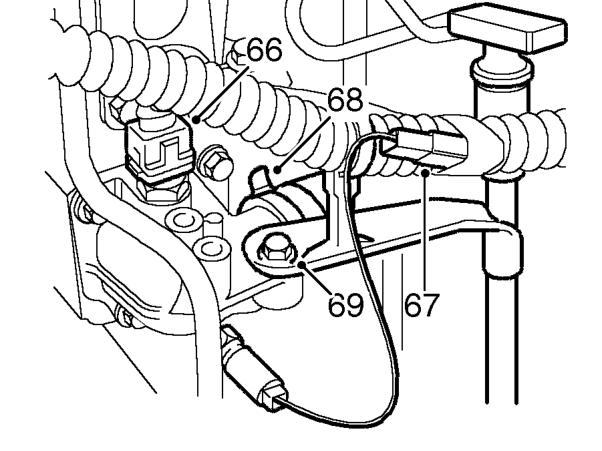

  1. Disconnect multiplug from ECT sensor.
  2. Disconnect engine coolant temperature gauge Lucar from harness.
  3. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
  4. Remove bolt securing dipstick tube bracket to coolant outlet elbow.
All models – Remove bolt securing dipstick tube bracket to coolant outlet elbow.

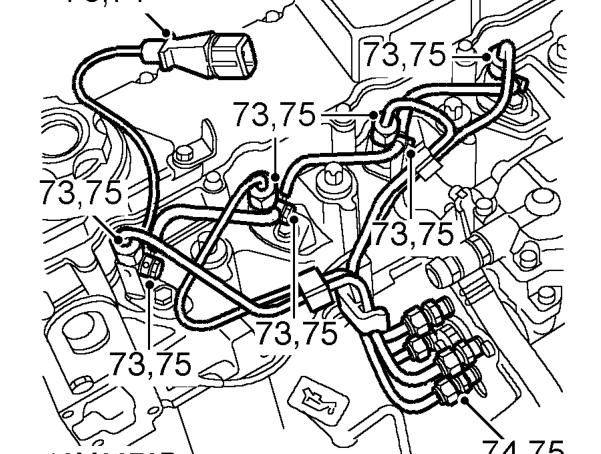

  1. Release injector needle lift sensor multiplug from injection pump bracket.
  2. Disconnect injector needle lift sensor multiplug from harness.
  3. Position absorbent cloth around fuel injector pipe unions to absorb any fuel spillage.
  4. Loosen unions securing injection and fuel return pipes to injectors.
  5. Loosen unions securing pipes to injection pump.

CAUTION: To prevent damage to fuel injection pipes or components, use 2 spanners when loosening unions.

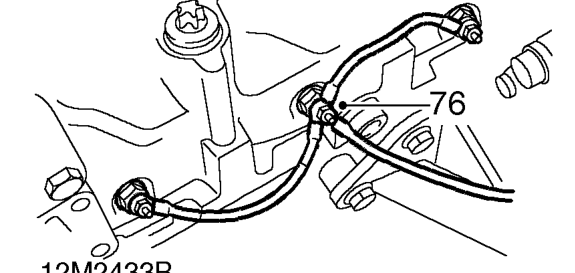

  1. Disconnect pipe unions from injectors and injection pump, remove pipes.

CAUTION: Plug the connections.

All models – Disconnect pipe unions from injectors and injection pump, remove pipes.
  1. Remove nut and disconnect feed lead from glow plug No. 2.

NOTE: 4 glow plugs are fitted to later engines.
