Models without intercooler

46. Fit bolt securing steady bar to gearbox and tighten to 10 Nm.
47. Fit exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
48. Fit MAF sensor to air intake pipe and tighten clip.
49. Connect multiplug to MAF sensor.
50. Position earth lead to gearbox, fit bolt and tighten to 35 Nm.
51. Feed clutch cable through abutment bracket and connect to clutch release lever.
52. Position battery tray in vehicle.
53. Tighten 3 bolts securing battery tray to vehicle.
54. Position engine compartment fuse box to body, fit bolt and tighten to 10 Nm.
55. Fit 4 bolts securing battery tray to body and tighten to 10 Nm.
56. Fit and tighten bolt securing engine compartment fuse box to battery tray.
57. Fit engine management relay module. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
58. Fit ECM. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
59. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
60. If required: Refill engine with oil. See MAINTENANCE.
61. Lower vehicle.
62. Fit engine acoustic cover. See BODY, Exterior fittings.
63. Fill gearbox with correct grade of oil. See MANUAL GEARBOX - ’PG1’, Adjustments.
64. Refill cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.
65. Bleed power steering system. See STEERING, Adjustments.

Models without intercooler

66. Adjust throttle cable. See ENGINE MANAGEMENT SYSTEM - EDC, Adjustments.

ENGINE STEADY BAR

Service repair no - 12.45.08

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove undertray. See BODY, Exterior fittings.

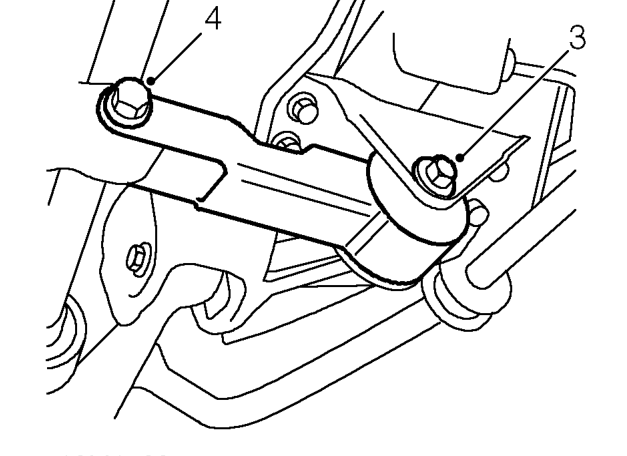

3. Remove through bolt securing engine steady bar to sub-frame.
4. Remove through bolt securing engine steady bar to bracket on gearbox.
5. Remove engine steady bar.

Refit

1. Position engine steady bar to sub-frame and fit through bolt.
2. Fit and tighten through bolt securing steady bar to bracket on gearbox to 85 Nm.
3. Tighten through bolt, steady bar to sub-frame, to 85 Nm.
4. Fit undertray. See BODY, Exterior fittings.
5. Remove stand(s) and lower vehicle.
