FIP TIMING BELT

Service repair no - 12.65.51

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove FIP timing belt cover. See this section.
  2. Remove camshaft timing belt upper cover. See this section.
  3. Remove RH front road wheel.

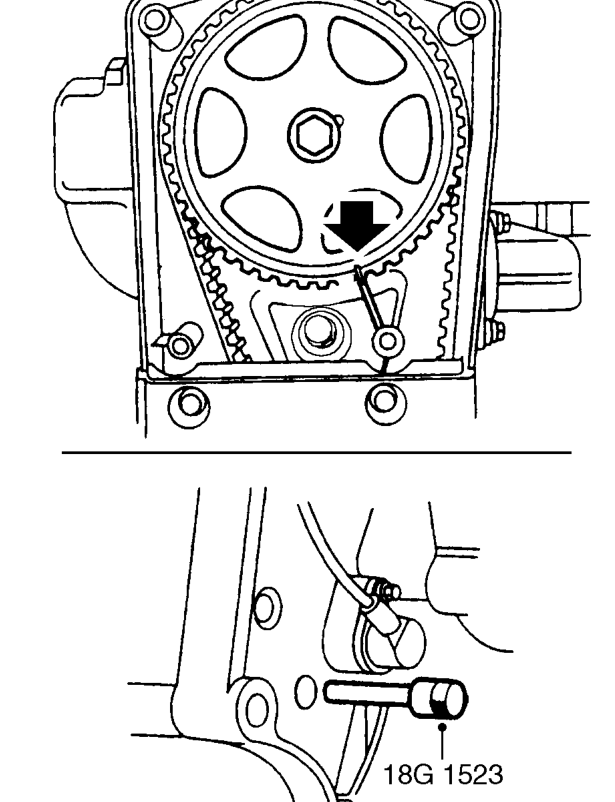

Fip timing belt – Remove RH front road wheel.
  1. Insert timing pin 18G 1523 through hole in gearbox adapter plate, hold pin in contact with flywheel, and using assistance, rotate crankshaft clockwise until timing pin enters flywheel.

CAUTION: Never use the camshaft gear, gear retaining bolt or timing belt to rotate crankshaft.

  1. Check that timing marks on camshaft gear and back cover are aligned.
