Rover 200 Workshop Manual (1995-1999)08 · Engine - L Series
08 · Engine

Fip timing belt (page 4 of 4)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - L SeriesFip timing belt · page 4 of 4
Diagram

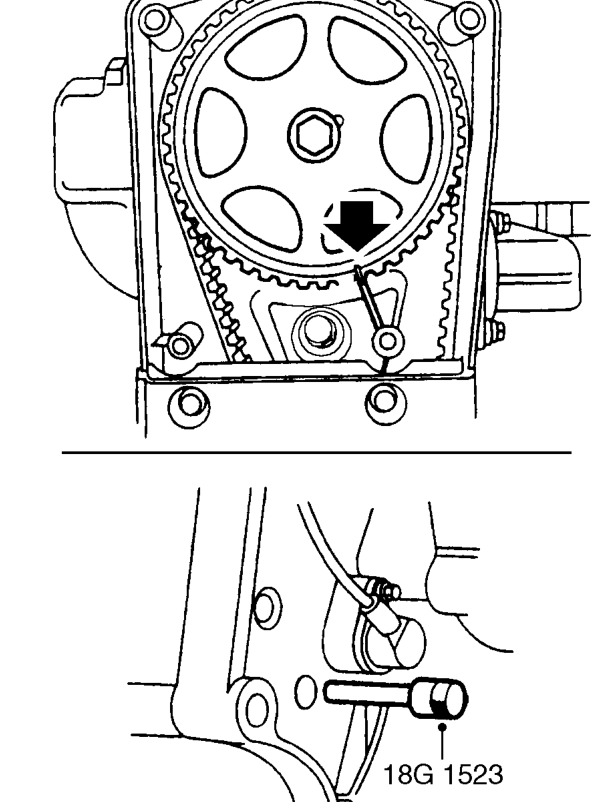

  1. Rotate crankshaft clockwise 2 complete revolutions and fit timing pin 18G 1523.

CAUTION: Ensure pin is fully inserted into hole in flywheel.

  1. Check that camshaft gear timing mark is aligned with mark on back cover.
Check that camshaft gear timing mark is aligned with mark on back cover.
  1. Insert locking pin 18G 1717 through FIP drive gear and into hole in adapter plate.

NOTE: Locking pin may be a tight fit at this stage.

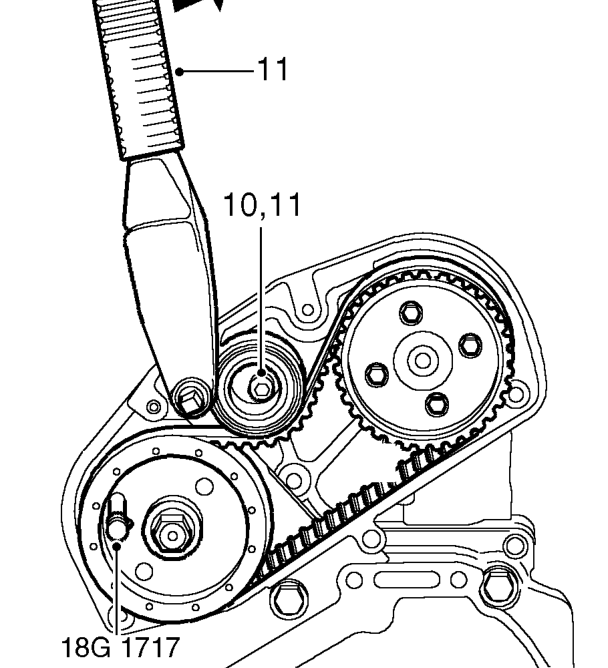

  1. Loosen timing belt tensioner Allen bolt.
  2. Using a torque wrench fitted to tensioner pulley backplate, apply a clockwise, as viewed from rear of engine, torque loading of 6 Nm to drive belt. Maintain loading and tighten tensioner pulley Allen bolt to 44 Nm.

CAUTION: Do not exceed specified torque figure.
