Camshaft timing belt upper cover

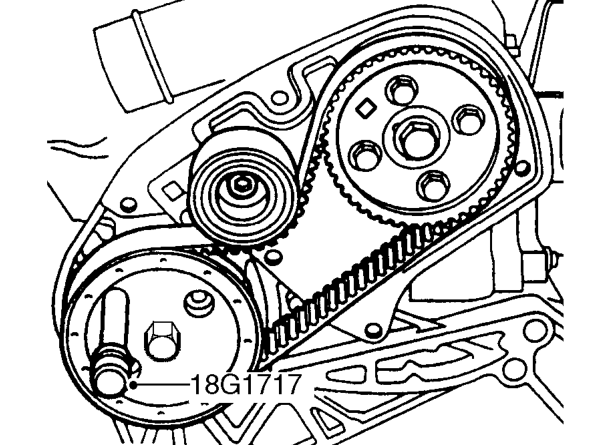

25. Insert locking pin 18G 1717 through hole in FIP drive gear and into hole in adapter plate.

CAUTION: To ensure injection pump timing is correct, locking pin must be a sliding fit. If pin is a tight fit, adjustment procedure must be repeated.

26. On completion, remove timing pin 18G 1523 and locking pin 18G 1717.
27. Fit FIP timing belt cover. See this section.
28. Fit timing belt upper cover. See this section.
29. Fit timing belt tensioner access plug in lower cover.
30. Fit engine RH mounting. See this section.
31. Fit bolt securing engine mounting steady bar to body and tighten to 80 Nm.
32. Fit PAS pipe mounting bracket to body and tighten bolt.
33. Position PAS pipes to bracket and tighten bolts.
34. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
35. Remove stand(s) and lower vehicle.
36. Connect battery earth lead.

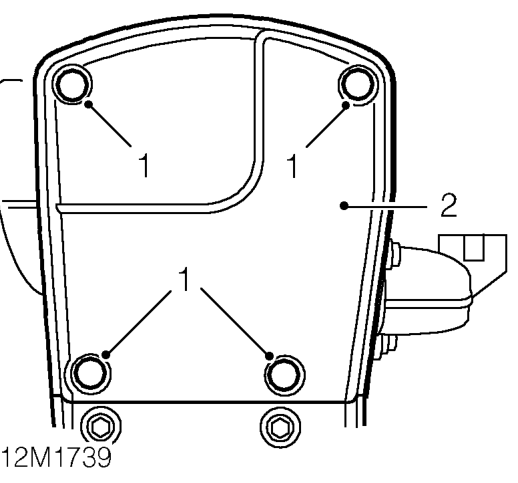

CAMSHAFT TIMING BELT UPPER COVER

Service repair no - 12.65.41

Remove

1. Remove 4 bolts securing timing belt upper cover to rear cover.
2. Remove timing belt upper cover.

Refit

1. Check that sealing strips are correctly located in timing belt upper cover.
2. Fit timing belt upper cover and tighten bolts to 5 Nm.
