Engine - L SeriesCamshaft timing belt · page 6 of 6

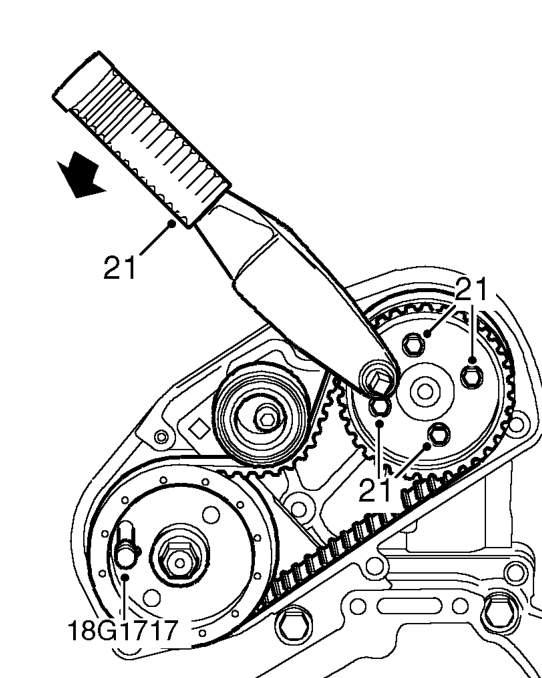

- Fit torque wrench to square hole in FIP timing belt drive gear as shown and apply an anti-clockwise (viewed from rear of engine) torque loading of 25 Nm. Maintain loading and tighten 4 bolts securing gear to 25 Nm.

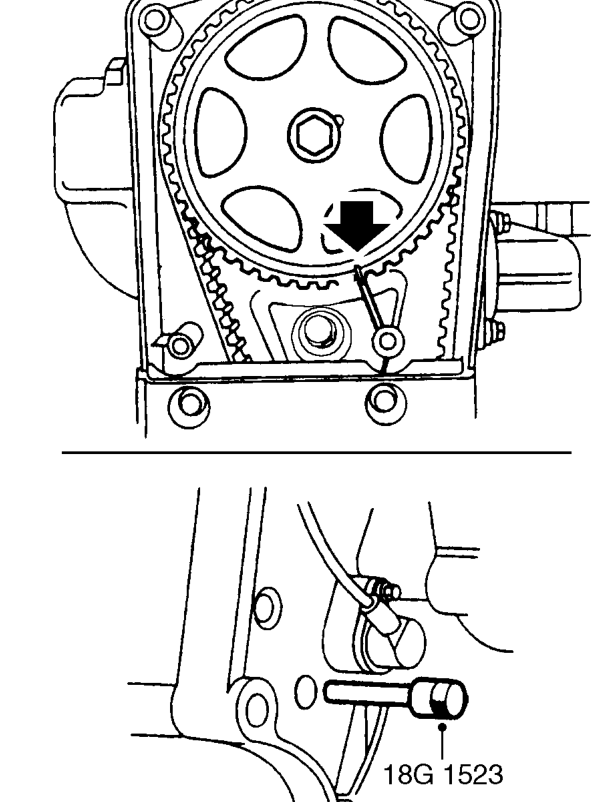

- Remove locking pin 18G 1717 and timing pin 18G 1523.
- Rotate crankshaft clockwise 2 revolutions and fit timing pin 18G 1523.
CAUTION: Ensure pin is fully inserted in hole in flywheel.
- Check that camshaft gear timing mark is aligned with mark on back cover.
