Engine RH mounting

Refit

1. Position engine mounting to body and gearbox mounting brackets.
2. Fit bolts securing engine mounting to gearbox bracket and tighten to 100 Nm.
3. Fit bolt securing engine mounting to body mounting bracket and tighten to 85 Nm.
4. Remove jack.
5. Fit undertray. See BODY, Exterior fittings.
6. Fit battery tray to vehicle.
7. Tighten bolts securing battery tray to body.
8. Position fuse box and secure with bolt.
9. Fit bolts securing battery tray to body.
10. Fit bolt securing fuse box to battery tray.
11. If fitted: Secure ABS fuse holder to battery tray.
12. Fit engine management relay module. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
13. Fit engine control module. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
14. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
15. Remove stand(s) and lower vehicle.

ENGINE RH MOUNTING

Service repair no - 12.45.31

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove undertray. See BODY, Exterior fittings.

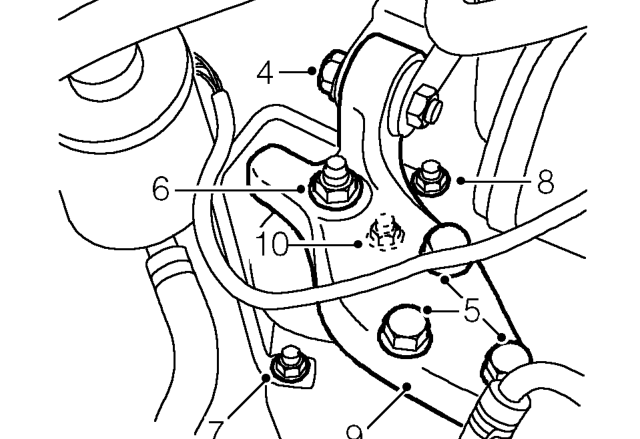

3. Fit wooden block to jack and position jack to support engine.

4. Remove bolt securing RH steady bar to engine mounting bracket.
5. Remove 3 bolts securing mounting bracket to engine.
6. Remove nut securing mounting bracket to engine mounting.
7. Remove nut securing engine mounting and restraint bar to body.
8. Loosen nut securing restraint bar to body and move aside.
9. Remove engine mounting bracket.
10. Remove nut securing engine mounting to body.
11. Remove engine RH mounting.
