Engine - L SeriesEngine LH mounting

ENGINE LH MOUNTING

Service repair no - 12.45.30

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove air cleaner See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  2. Remove engine control module. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  3. Remove engine management relay module. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

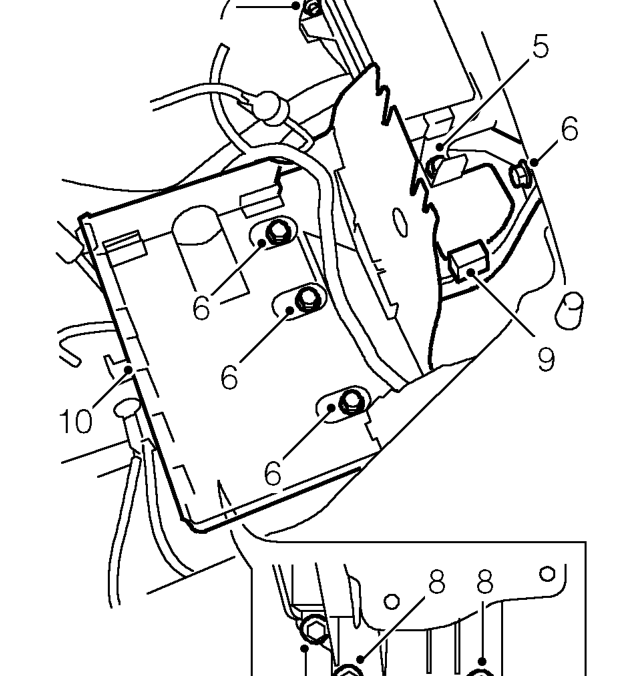

Engine lh mounting – Remove engine management relay module. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  1. Remove bolt securing engine compartment fuse box to battery tray.
  2. Remove 4 bolts securing battery tray to body.
  3. Remove bolt securing engine compartment fuse box to body and position fuse box aside.
  4. Loosen 3 bolts securing battery tray to body.
  5. If fitted: Release ABS fuse holder from battery tray.
  6. Remove battery tray.
  7. Remove undertray. See BODY, Exterior fittings.
  8. Fit wooden block to jack and position jack to support gearbox.

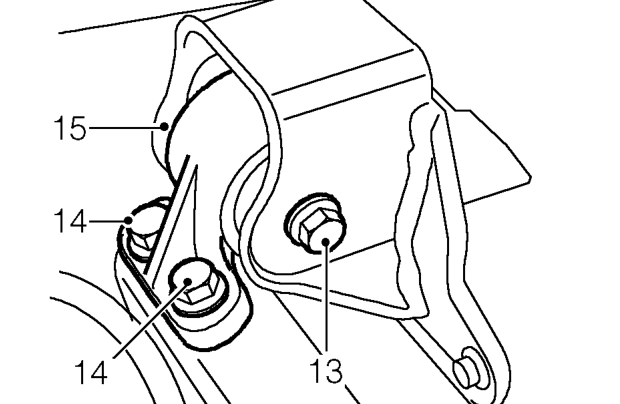

Engine lh mounting – Fit wooden block to jack and position jack to support gearbox.
  1. Remove bolt securing engine mounting to body mounting bracket.
  2. Remove 2 bolts securing engine mounting to gearbox mounting bracket.
  3. Remove engine mounting.
