Rover 200 Workshop Manual (1995-1999)08 · Engine - L Series
08 · Engine

Models with intercooler

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Models with intercooler
Engine - L SeriesModels with intercooler · page 1 of 3

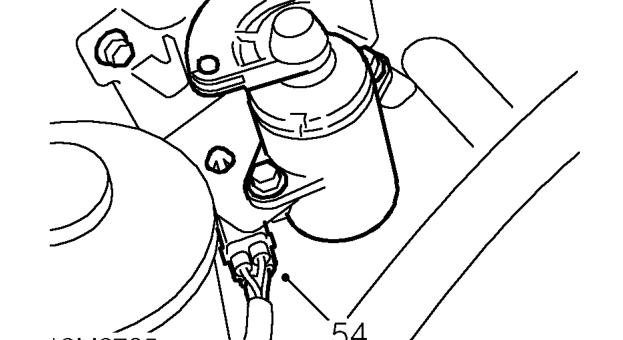

Models with intercooler

Models with intercooler
  1. Disconnect harness multiplug from throttle potentiometer

All models

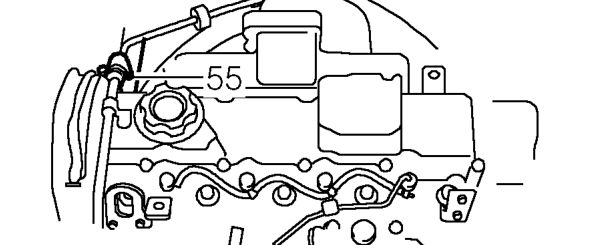

All models – Disconnect harness multiplug from throttle potentiometer
  1. Release clip and disconnect brake servo vacuum hose from vacuum pipe.

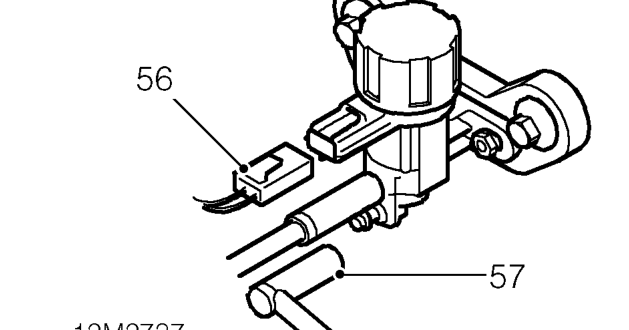

All models – Release clip and disconnect brake servo vacuum hose from vacuum pipe.
  1. Disconnect multiplug from EGR solenoid.
  2. Disconnect vacuum pipe from EGR valve.

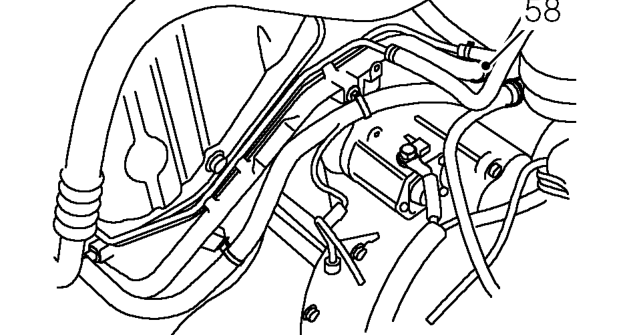

All models – Disconnect vacuum pipe from EGR valve.
  1. Loosen clip and disconnect hose from coolant rail.

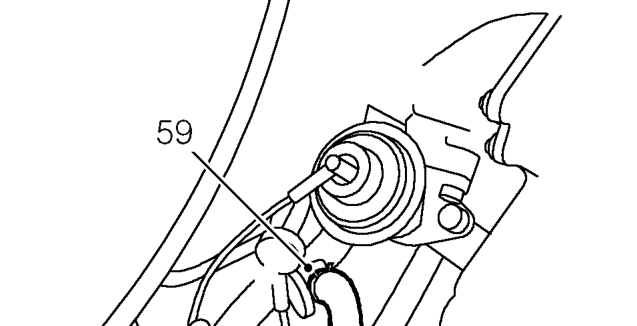

All models – Loosen clip and disconnect hose from coolant rail.
  1. Loosen clip and disconnect hose from heater valve.
  2. Position container to collect fluid loss from power steering system.
