Flywheel starter ring gear

FLYWHEEL STARTER RING GEAR

Service repair no - 12.53.19

Remove

1. Remove engine flywheel. See this section.

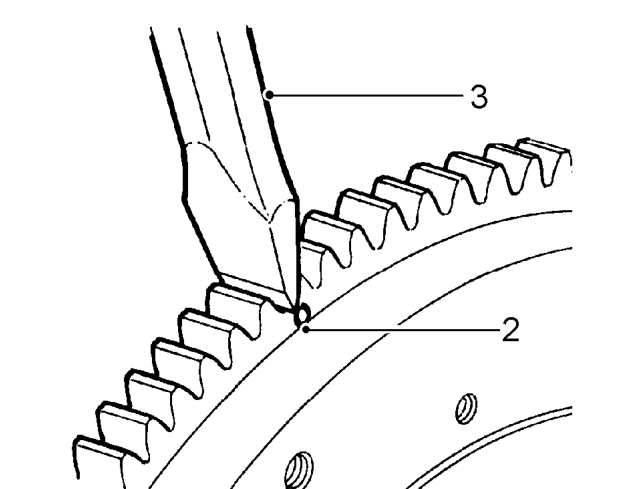

2. Drill a 2 mm diameter hole at root of 2 teeth.
3. Apply a cold chisel to root of teeth, strike chisel with hammer to break ring gear.

WARNING: Suitable eye protection must be worn.

4. Remove starter ring gear.

Refit

1. Clean flywheel and starter ring gear.
2. Heat new starter ring gear evenly to 350°C, indicated when the ring is a light blue colour.
3. Locate ring gear on flywheel and press ring gear hard against flange on flywheel.
4. Ensure ring gear is correctly seated around the complete circumference of flywheel and allow to cool.
5. Fit engine flywheel. See this section.

ENGINE OIL FILTER

Service repair no - 12.60.04

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove undertray. See BODY, Exterior fittings.
3. Clean area around filter head and place a container beneath engine.

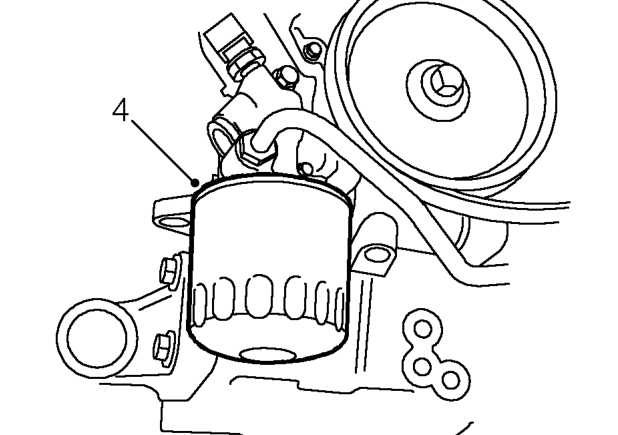

4. Using a strap wrench, unscrew and discard filter.
