ENGINE SUMP GASKET

Service repair no - 12.60.38

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove oil filter. See this section.

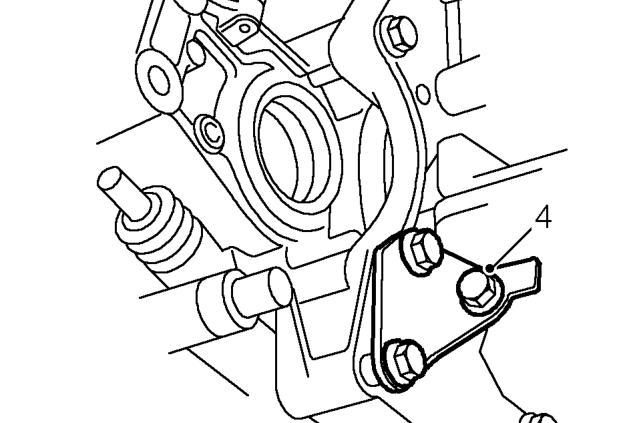

  2. Remove engine steady bar. See this section.
Engine sump gasket – Remove engine steady bar. See this section.

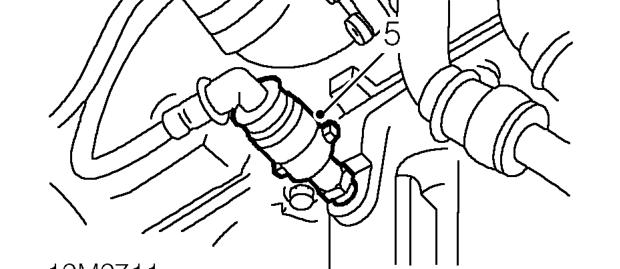

  1. Remove bolt securing sump to gearbox support bracket.
Engine sump gasket – Remove bolt securing sump to gearbox support bracket.

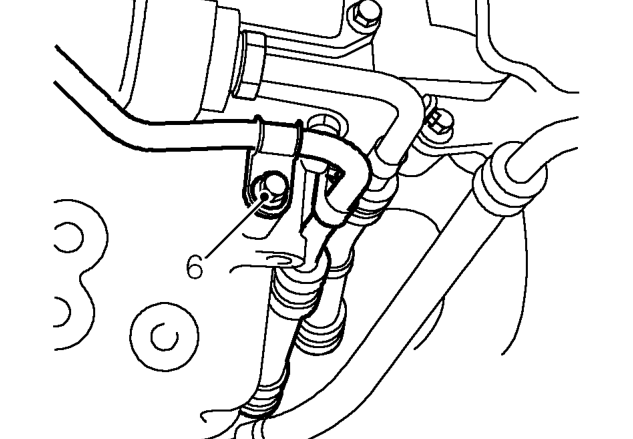

  1. Disconnect vacuum pump oil drain pipe from sump.
Engine sump gasket – Disconnect vacuum pump oil drain pipe from sump.
  1. Remove bolt securing oil pipe to sump.
Engine sump gasket – Remove bolt securing oil pipe to sump.

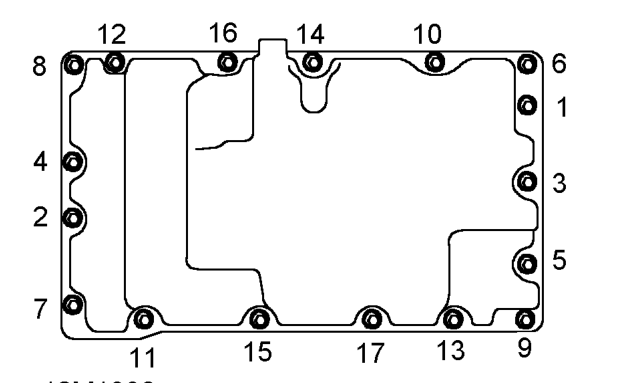

  1. Using sequence shown, remove 17 bolts securing sump to cylinder block.
  2. Remove sump.
  3. Remove and discard gasket from sump.
