Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)08 · Engine - L Series
08 · Engine

Models without intercooler

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Models without intercooler
Engine - L SeriesModels without intercooler

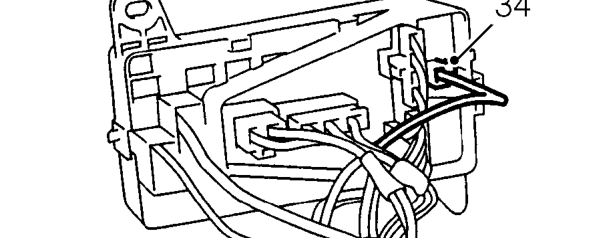

Diagram
  1. Disconnect multiplug from fuse box.

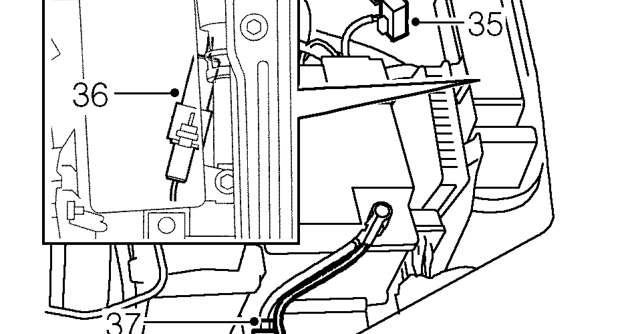

Disconnect multiplug from fuse box.
  1. Release glow plug relay from mounting bracket.
  2. Disconnect engine harness to main harness connector.
  3. Remove bolt securing earth lead to bonnet platform.
  4. Remove radiator cooling fan. See COOLING SYSTEM - ’L’ SERIES, Repairs.

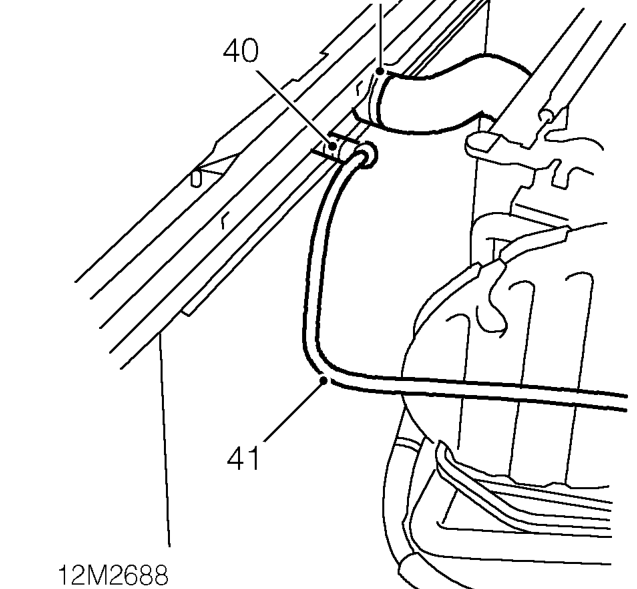

Remove radiator cooling fan. See COOLING SYSTEM - ’L’ SERIES, Repairs.
  1. Loosen clip and disconnect top hose from radiator.
  2. Loosen clip and disconnect coolant expansion tank hose from radiator.
  3. Position coolant expansion tank hose aside.

Models without intercooler

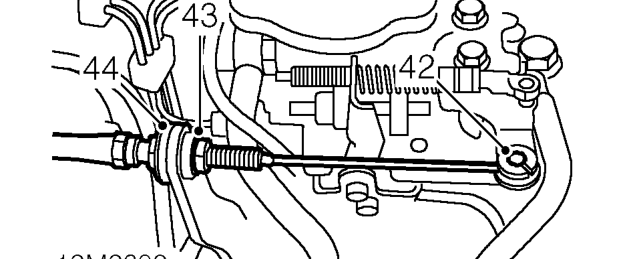

Models without intercooler – Position coolant expansion tank hose aside.
  1. Release throttle cable from throttle lever.
  2. Loosen nut securing throttle cable to abutment bracket.
  3. Release throttle cable from abutment bracket and position aside.
