Rover 200 Workshop Manual (1995-1999)08 · Engine - L Series
08 · Engine

Models without intercooler (page 3 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - L SeriesModels without intercooler · page 3 of 3
Diagram

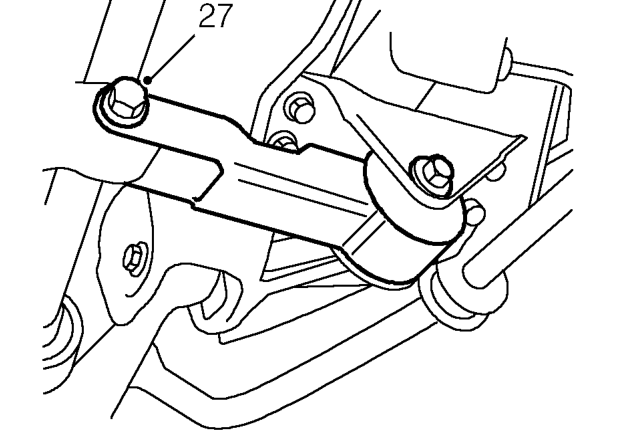

  1. Remove through bolt securing engine steady bar to mounting bracket on engine.
  2. Remove front beam. See FRONT SUSPENSION, Repairs.
  3. Release RH drive shaft from gearbox, as detailed in RH Differential oil seal. See MANUAL GEARBOX - ’PG1’, Repairs.
  4. Release LH drive shaft from gearbox, as detailed in differential oil seal. See MANUAL GEARBOX - ’PG1’, Repairs.
Release LH drive shaft from gearbox, as detailed in differential oil seal. See MANUAL GEAR

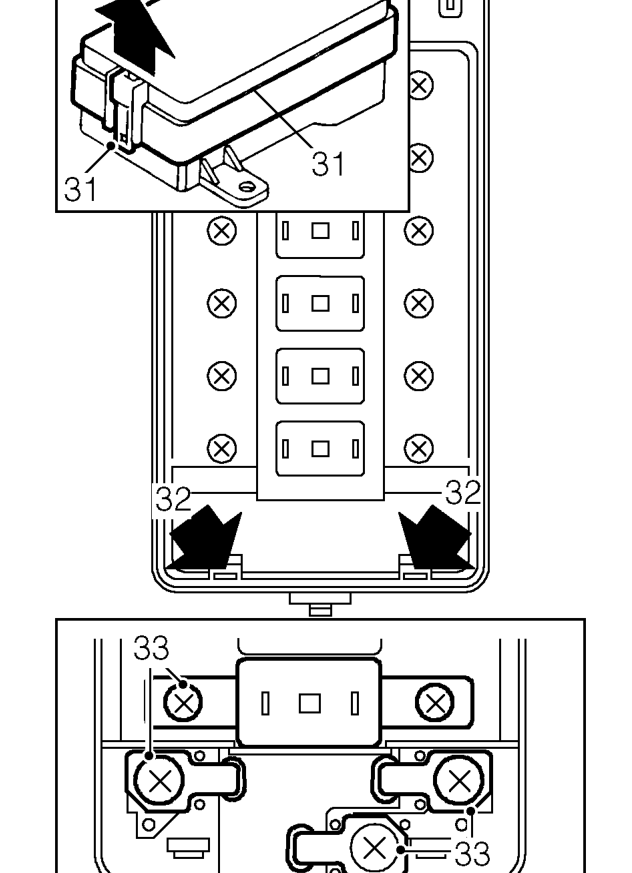

  1. Release clip and remove fuse box cover.
  2. Depress 2 clips and remove fuse box inner cover.
  3. Remove 2 screws securing positive leads to fuse box.
