Cause of contamination must be rectified.

9. Remove tensioner access plug from camshaft timing belt lower cover.
10. Loosen Allen bolt securing tensioner pulley.
11. Remove tensioner access plug from back cover.

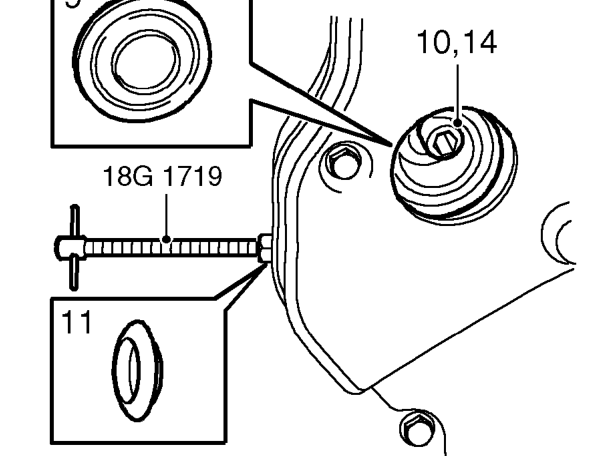

12. Screw timing belt tensioner retractor tool 18G 1719 into timing belt tensioner plunger.
13. Tighten nut on tool 18G 1719 until timing belt tension is released.
14. Tighten tensioner pulley Allen bolt.
15. Remove engine RH mounting. See this section.
16. Raise RH side of engine sufficiently only to give access to fit seal removal tool.

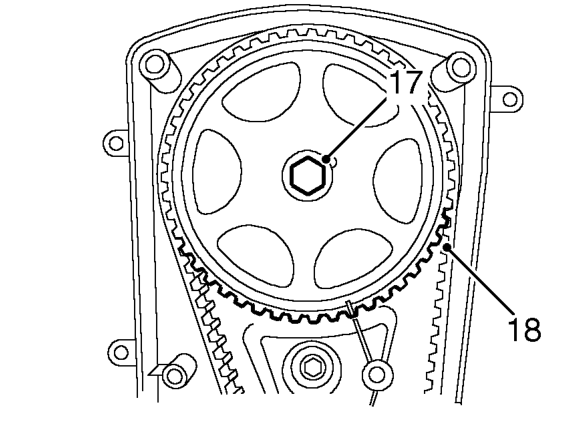

17. Remove and retain camshaft gear retaining bolt.
18. Release camshaft gear from camshaft and remove from belt.

CAUTION: Do not rotate camshaft or crankshaft with timing belt removed.

If the sintered gear has been subjected to prolonged oil contamination, it must be soaked in a solvent bath and thoroughly washed with solvent before refitment. Because of the porous construction of the sintered material, oil impregnated in the gear will emerge and contaminate a new belt.

If camshaft timing belt shows any sign of oil or coolant contamination, renew belt. See this section.

Cause of contamination must be rectified.

19. Fit but do not tighten the original camshaft gear retaining bolt.

CAUTION: Ensure camshaft does not rotate.
