Rover 200 Workshop Manual (1995-1999)08 · Engine - L Series
08 · Engine

Cause of contamination must be rectified. (page 2 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - L SeriesCause of contamination must be rectified. · page 2 of 3
Diagram

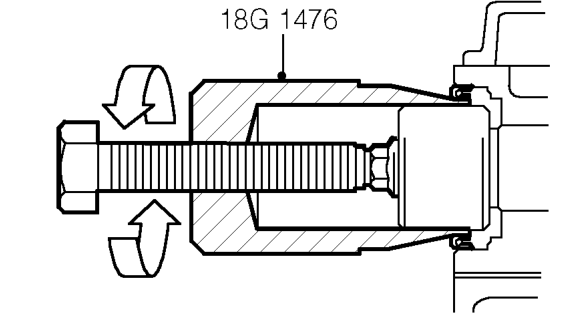

  1. Fit and tighten seal remover tool 18G 1476 to camshaft seal.
  2. Tighten seal remover centre screw to remove camshaft seal.
  3. Remove seal remover 18G 1476.
  4. Remove and discard seal from seal remover tool.
  5. Remove and discard camshaft gear retaining bolt.

Refit

  1. Clean seal recess.
  2. Clean oil seal running surface on camshaft.
  3. Ensure seal fitting tool 18G 1716 is clean.

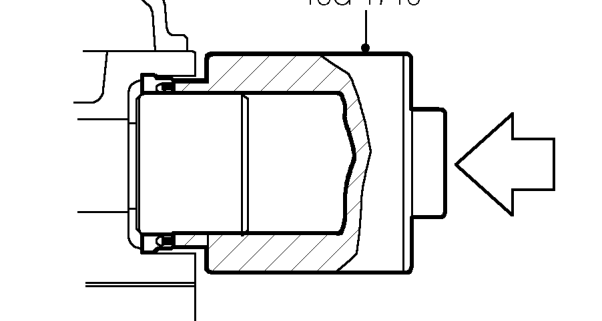

Ensure seal fitting tool 18G 1716 is clean.
  1. Locate new oil seal to seal housing.
  2. Position tool 18G 1716 to seal and drift seal into housing.

CAUTION: Oil seal must be fitted dry.

  1. Remove tool 18G 1716.
  2. Clean camshaft gear and mating face.
  3. Fit camshaft gear to belt and position gear to camshaft.

CAUTION: Ensure timing marks on camshaft gear and upper rear cover are aligned.

  1. Apply clean engine oil to threads of new camshaft gear retaining bolt.
  2. Fit camshaft bolt but do not tighten at this stage.

CAUTION: Ensure camshaft does not rotate.

  1. Fit engine RH mounting. See this section.
