Cylinder head - inspection

  1. Inspect cylinder head for signs of damage.

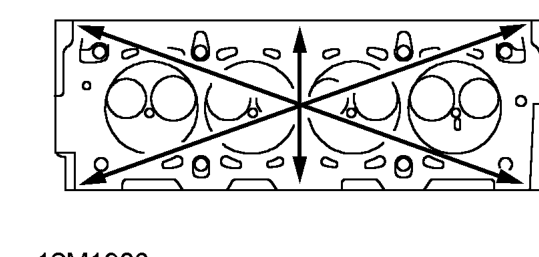

Cylinder head - inspection – Inspect cylinder head for signs of damage.
  1. Check cylinder head for warping, across centre and from corner to corner. Cylinder head maximum warp = 0.10 mm

CAUTION: Cylinder heads may not be refaced, replace head assembly if warping exceeds figure given.

Refit

  1. Clean mating faces of cylinder head and block. Clean oil and coolant passages. De-carbonise piston crowns and cylinder head if necessary.
  2. Clean dowel holes, dowels and cylinder block bolt holes.

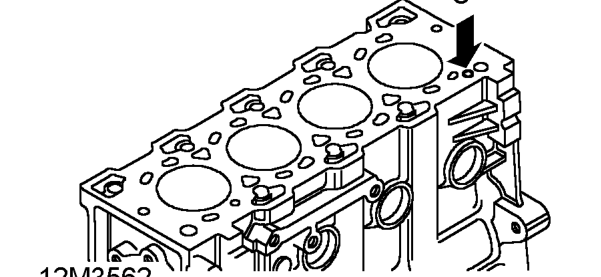

Cylinder head - inspection – Clean dowel holes, dowels and cylinder block bolt holes.
  1. Check that oil restrictor in cylinder block is clear and fitted below cylinder block top face.
  2. Clean and dry cylinder head bolts.

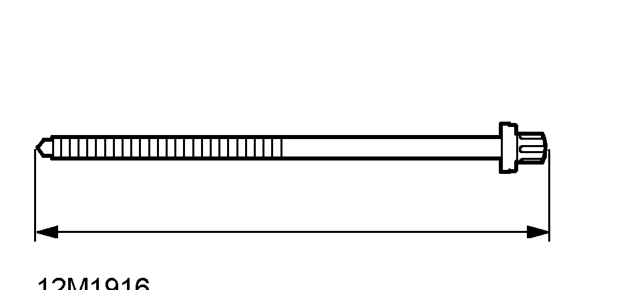

Cylinder head - inspection – Clean and dry cylinder head bolts.
  1. Measure length of cylinder head bolts. if any bolt exceeds the maximum length of 243.41 mm, then all bolts must be renewed.

CAUTION: Do not remove washers from bolts, keep bolts in their fitted order.
