Camshaft cover gasket - models with intercooler

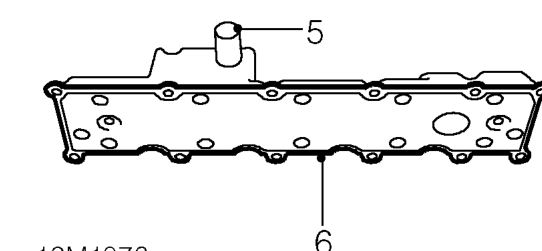

5. Remove camshaft cover.
6. Remove and discard gasket.

Refit

1. Clean camshaft cover and mating face on camshaft carrier. Ensure bolt holes in camshaft carrier are clean and dry.
2. Fit new gasket, dry, to camshaft cover.

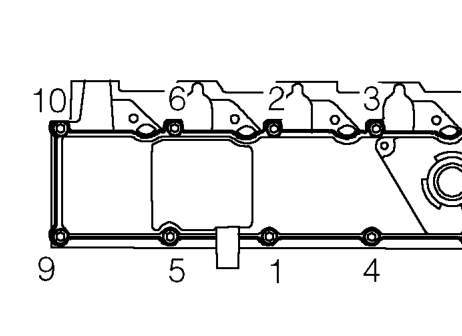

3. Fit camshaft cover and tighten bolts in sequence shown to 12 Nm.
4. Align brake servo vacuum pipe bracket to camshaft cover and secure with bolt.
5. Connect engine breather hose to camshaft cover and tighten clip.
6. Fit engine acoustic cover. See BODY, Exterior fittings.

CAMSHAFT COVER GASKET - MODELS WITH INTERCOOLER

Service repair no - 12.29.40

Remove

1. Remove engine acoustic cover. See BODY, Exterior fittings.

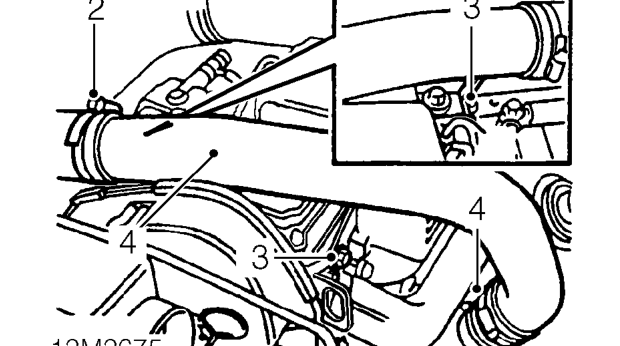

2. Loosen clip and disconnect intercooler top hose from turbocharger pipe.
3. Remove 2 bolts securing turbocharger pipe to cylinder head and engine lifting bracket.
4. Loosen clip securing pipe to turbocharger and remove turbocharger pipe.

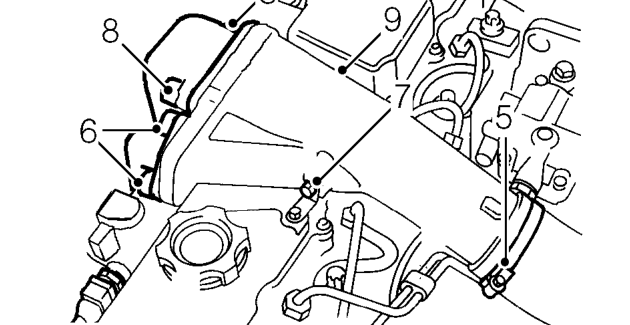

5. Loosen clip and disconnect intercooler bottom hose from inlet manifold intake pipe.
6. Remove 2 bolts securing EGR recirculation pipe to inlet manifold intake pipe.
7. Remove bolt securing inlet manifold intake pipe to camshaft cover.
8. Remove 2 bolts securing intake pipe to inlet manifold.
9. Remove inlet manifold intake pipe and discard gasket.
