OIL PUMP

Service repair no - 12.60.26

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove RH front road wheel.
  2. Remove engine oil filter. See this section.
  3. Remove camshaft timing belt. See this section.

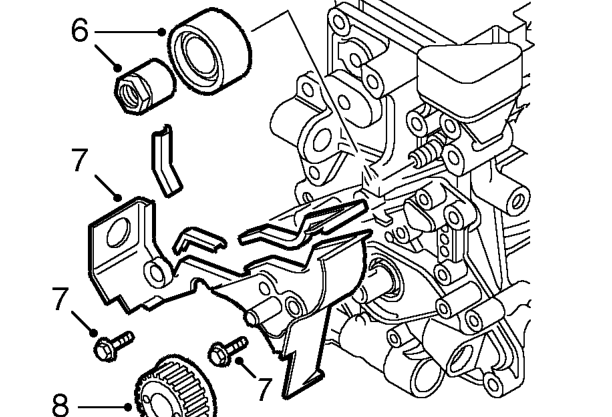

Oil pump – Remove camshaft timing belt. See this section.
  1. Remove idler pulley centre nut and collect pulley.

NOTE: Idler pulley mounting stud may be unscrewed as nut is removed.

  1. Remove 2 bolts securing lower half of timing belt rear cover to engine and remove cover.
  2. Remove crankshaft timing gear.

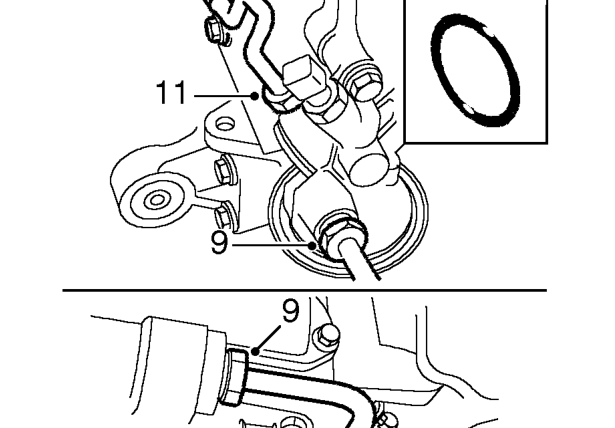

Oil pump – Remove crankshaft timing gear.
  1. Using a 22 mm open ended spanner, remove oil cooler pipes from oil pump housing and move aside.
  2. Remove and discard ’O’ rings from pipes.
  3. Loosen union and disconnect turbocharger oil feed pipe from oil pump housing and move aside. Remove ’O’ ring from pipe.
  4. Discard ’O’ ring.
  5. Remove oil pressure switch. See this section.
