Oil pump (page 2 of 3)

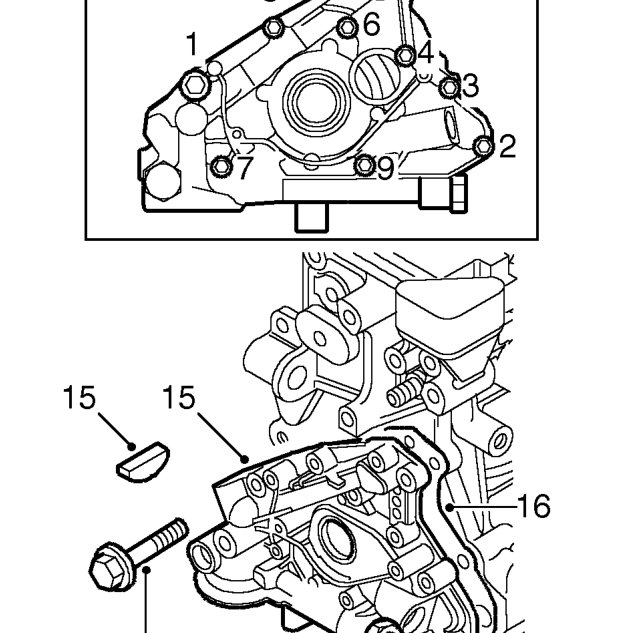

14. Using sequence shown, remove 1 x M10 and 8 x M6 bolts securing oil pump to cylinder block. Note position of longest bolt at position 9.
15. Remove oil pump from cylinder block and crankshaft, recover Woodruff key.
16. Remove and discard gasket.

Refit

1. Ensure bolt holes in cylinder block are clean and dry.
2. Remove all traces of gasket from cylinder block.
3. Using suitable solvent, remove all traces of sealant from front main bearing cap.
4. Clean oil seal running surface of crankshaft.

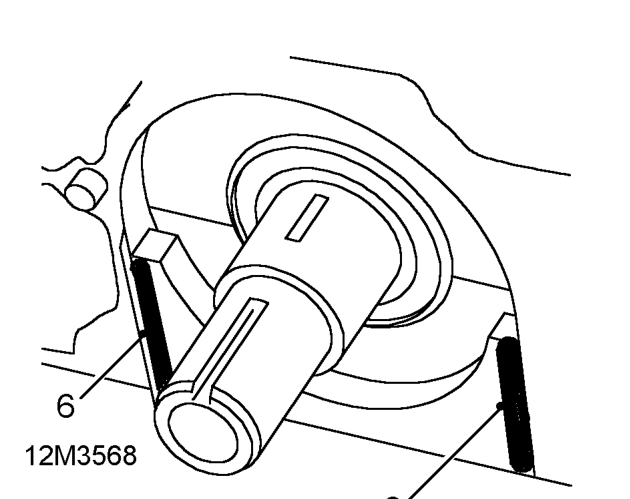

5. Fit Woodruff key to crankshaft.

6. Using sealant from kit, Part Number GUG 705963GM, apply a 1 mm thick bead of sealant to joint line of front main bearing cap and cylinder block.
7. Fit new gasket, dry, to cylinder block.
