Rover 200 Workshop Manual (1995-1999)08 · Engine - L Series
08 · Engine

Models with intercooler

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Models with intercooler
Engine - L SeriesModels with intercooler · page 1 of 3

Models with intercooler

Models with intercooler

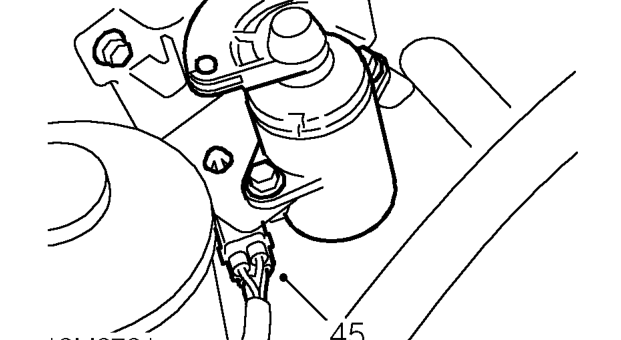

  1. Disconnect harness multiplug from throttle potentiometer

All models

All models – Disconnect harness multiplug from throttle potentiometer

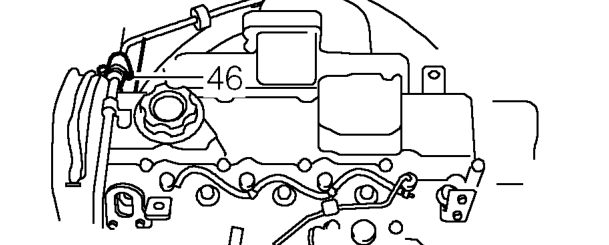

  1. Release clip and disconnect brake servo vacuum hose from vacuum pipe.
All models – Release clip and disconnect brake servo vacuum hose from vacuum pipe.

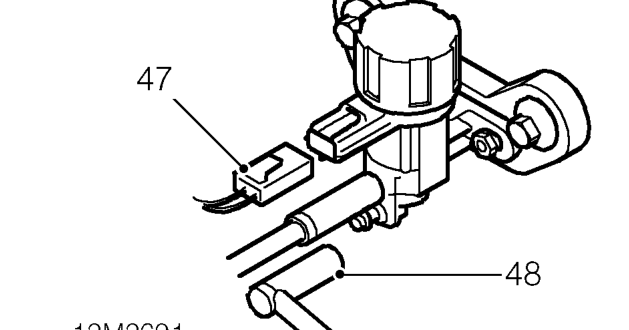

  1. Disconnect multiplug from EGR solenoid.
  2. Disconnect vacuum pipe from EGR valve.
All models – Disconnect vacuum pipe from EGR valve.

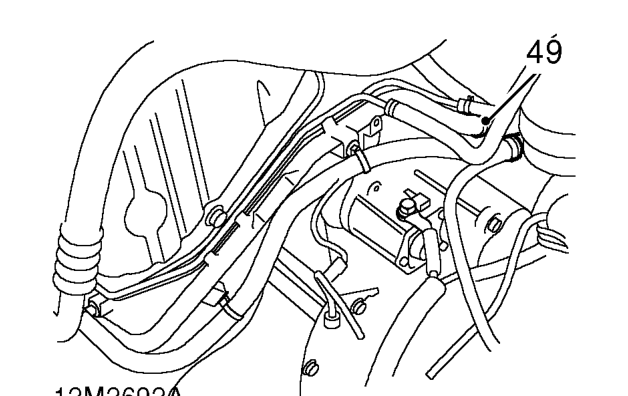

  1. Loosen clip and disconnect hose from coolant rail.
