Rover 200 Workshop Manual (1995-1999)08 · Engine - L Series
08 · Engine

Models with intercooler (page 2 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - L SeriesModels with intercooler · page 2 of 3
Diagram

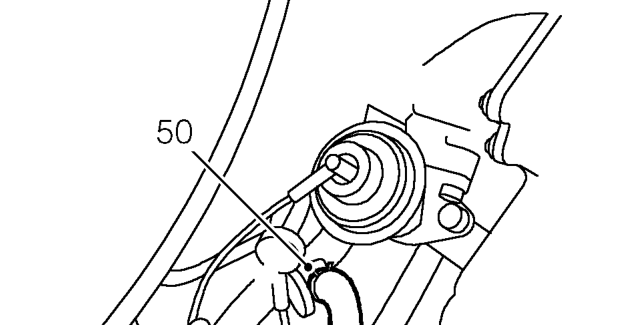

  1. Loosen clip and disconnect hose from heater valve.
  2. Position container to collect fluid loss from power steering system.
Position container to collect fluid loss from power steering system.

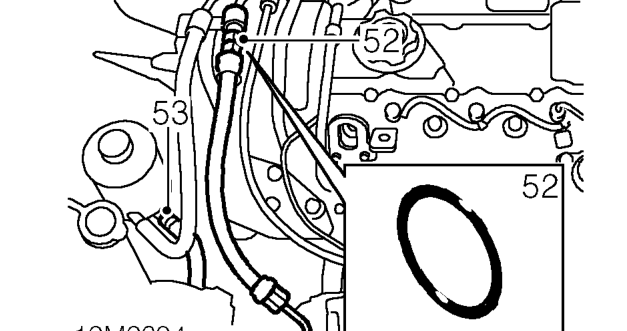

  1. Loosen PAS pump pressure hose to intermediate pipe union, remove and discard ’O’ ring seal.

CAUTION: Use 2 spanners when loosening or tightening unions. Plug the connections to prevent the ingress of dirt.

  1. Release clip and disconnect PAS pump feed hose from PAS fluid reservoir.
Release clip and disconnect PAS pump feed hose from PAS fluid reservoir.

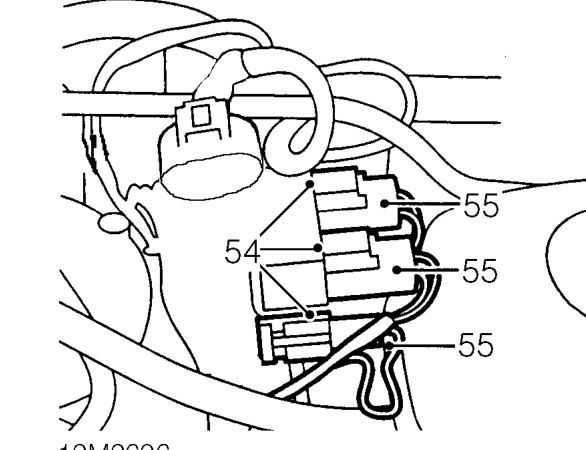

  1. Release 3 multiplugs from mounting bracket on bulkhead.
  2. Disconnect engine harness multiplugs from main harness.
Disconnect engine harness multiplugs from main harness.

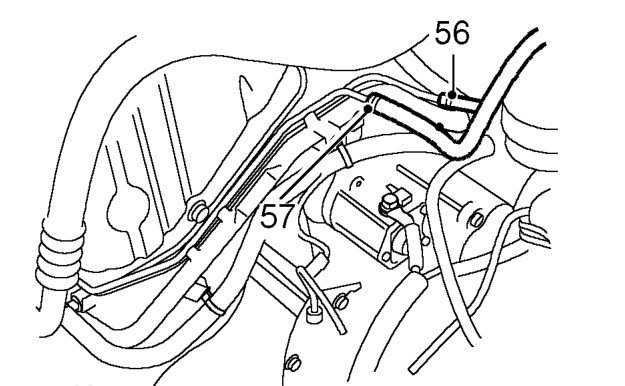

  1. Release clip and disconnect hose from fuel filter.
  2. Release clip and disconnect hose from fuel return pipe.
