Models with intercooler (page 3 of 3)

Make

Rover

Model

200 Workshop Manual

Year

1995–1999

Section

Repairs

Engine - L SeriesModels with intercooler · page 3 of 3

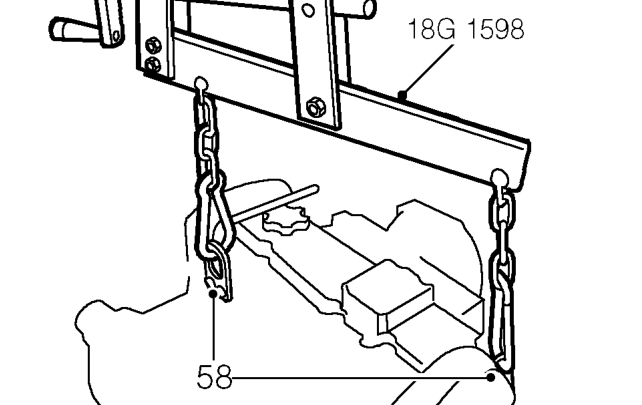

58. Connect adjustable lifting bracket tool 18G 1598 to engine lifting brackets.
59. Connect a hoist to lifting bracket tool 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.

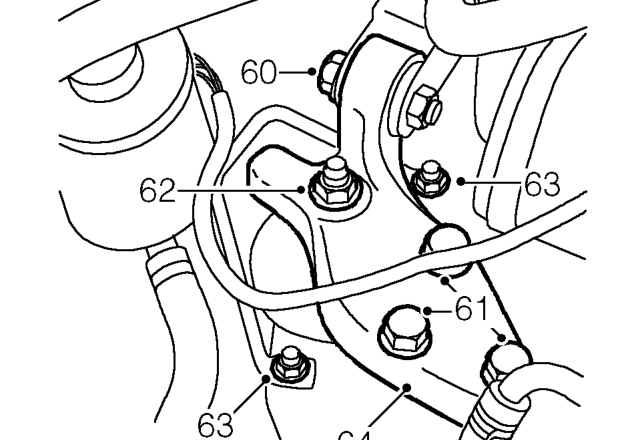

60. Remove through bolt securing RH steady bar to engine mounting bracket.
61. Remove 3 bolts securing mounting bracket to engine.
62. Remove nut securing mounting bracket to engine mounting.
63. Loosen 2 nuts securing restraint bar to body.
64. Remove engine mounting bracket.

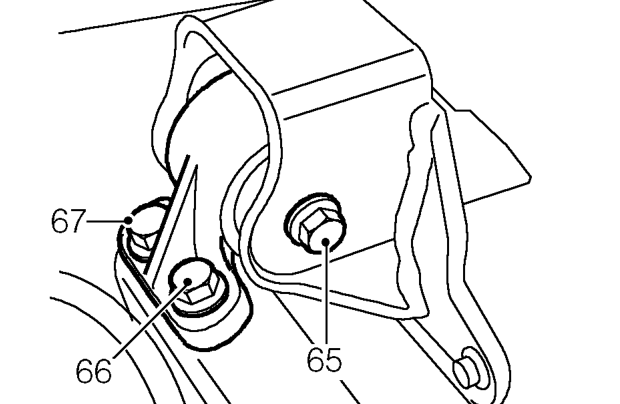

65. Remove through bolt securing engine LH mounting to bracket on body.
66. Remove 2 bolts securing engine mounting to bracket on gearbox.
67. Remove engine mounting.
68. Using assistance, manoeuvre and lower engine and gearbox from vehicle.
69. Disconnect hoist from adjustable lifting bracket.
70. Remove engine and gearbox from beneath vehicle.

08 Engine
