Engine - L SeriesCamshaft timing belt lower cover

CAMSHAFT TIMING BELT LOWER COVER

Service repair no - 12.65.43

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove RH front road wheel.
  2. Remove timing belt upper cover. See this section.
  3. Remove crankshaft front pulley. See this section.

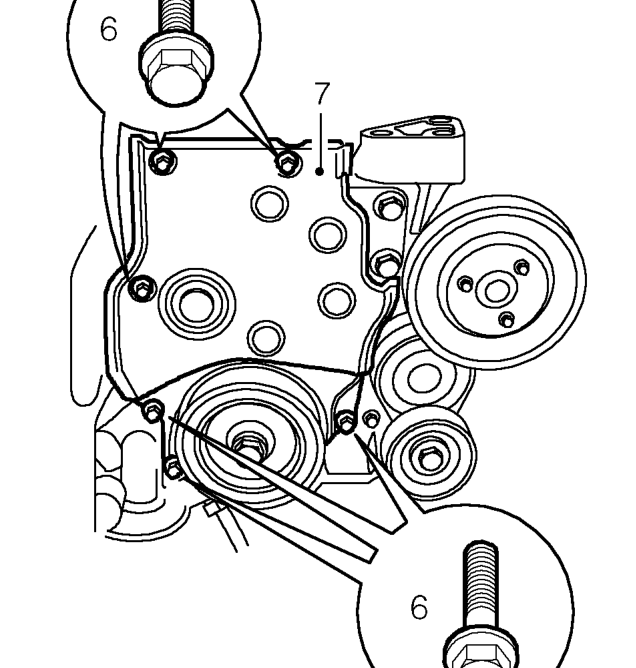

Camshaft timing belt lower cover – Remove crankshaft front pulley. See this section.
  1. Remove 6 bolts securing lower cover.
  2. Remove lower cover.

Refit

  1. Check that sealing strips are correctly located in timing belt lower cover.
  2. Fit lower cover to engine and tighten bolts to 5 Nm.

NOTE: The 3 longer bolts are fitted in the bottom of the cover.

  1. Fit crankshaft front pulley. See this section.
  2. Fit timing belt upper cover. See this section.
  3. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  4. Remove stand(s) and lower vehicle.
  5. Connect battery earth lead.
