CYLINDER HEAD GASKET - MODELS WITHOUT INTERCOOLER

Service repair no - 12.29.02

Remove

  1. Disconnect battery earth lead.
  2. Drain cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.
  3. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove FIP timing belt cover. See this section.
  2. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  3. Remove camshaft timing belt upper cover. See this section.
Cylinder head gasket - models without intercooler – Remove camshaft timing belt upper cover. See this section.

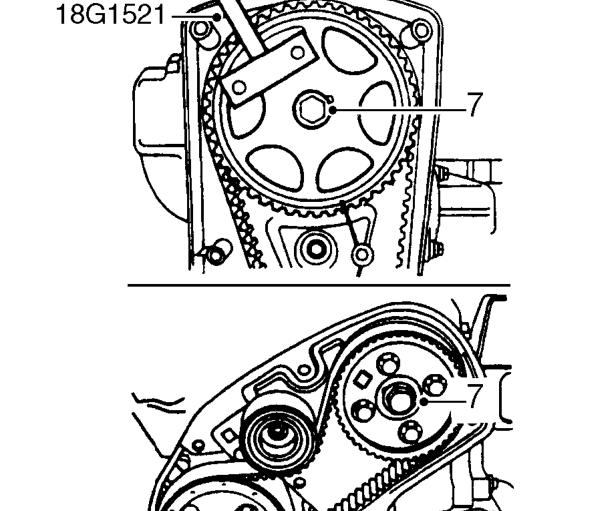

  1. Restrain camshaft gear using tool 18G 1521 and loosen but do not remove bolts securing camshaft and FIP timing belt drive gears.
Cylinder head gasket - models without intercooler – Restrain camshaft gear using tool 18G 1521 and loosen but do not remove bolts securing cam

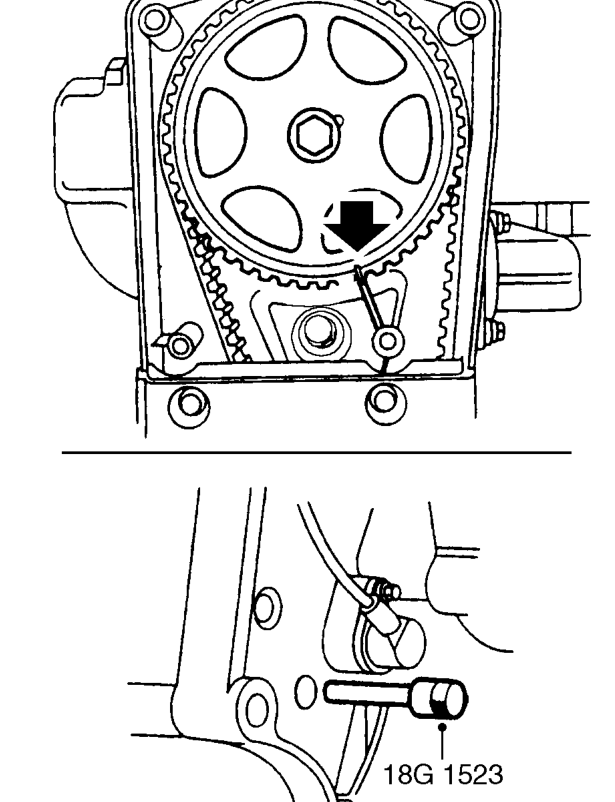

  1. Insert timing pin 18G 1523 through hole in gearbox adapter plate, hold pin in contact with flywheel and using assistance, rotate crankshaft clockwise until timing pin enters hole in flywheel.
  2. Check that timing marks on camshaft gear and back cover are aligned.

CAUTION: Do not use camshaft gear, gear retaining bolt or timing belt to rotate crankshaft.
