Engine - L SeriesCylinder head gasket - models without intercooler · page 3 of 3
  1. Remove and discard FIP timing belt drive gear bolt.
  2. Remove FIP timing belt drive gear.
Remove FIP timing belt drive gear.

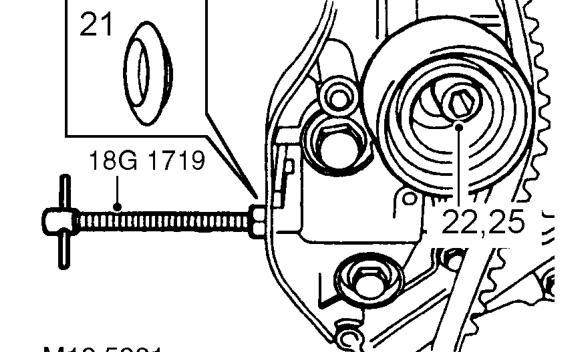

  1. Remove timing belt tensioner access plug from timing belt back cover.
  2. Loosen Allen bolt securing tensioner pulley.
  3. Screw timing belt tensioner retractor tool 18G 1719 into tensioner.
  4. Tighten nut on tool 18G 1719 until belt tension is released.
  5. Tighten Allen bolt securing tensioner pulley.
  6. Release timing belt from camshaft gear.

CAUTION: Ease timing belt off gear using fingers only. Metal levers may damage the belt and gear. DO NOT rotate the crankshaft with the timing belt removed and the cylinder head fitted.

Release timing belt from camshaft gear.

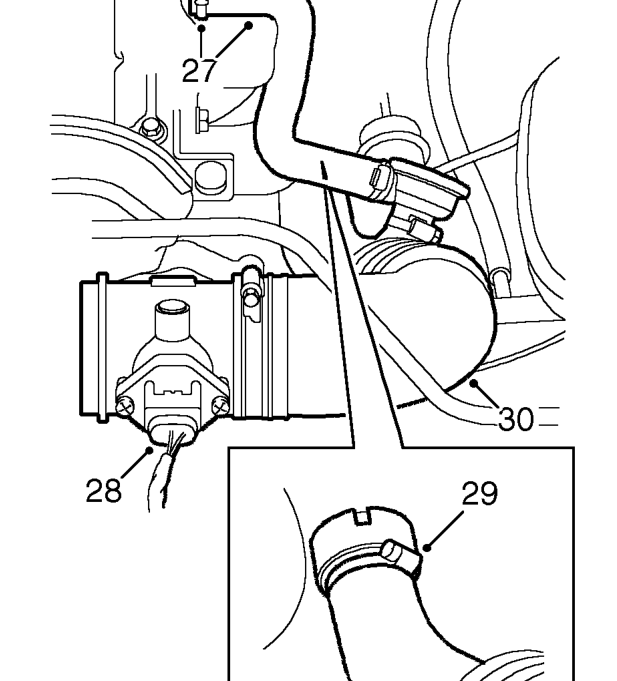

  1. Loosen clip and disconnect breather hose from camshaft cover.
  2. Disconnect multiplug from MAF sensor.
  3. Loosen clip and disconnect air intake pipe from turbocharger.
  4. Remove air intake pipe and MAF sensor.
  5. Disconnect exhaust front pipe from manifold flange. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
