Engine - L SeriesModels without intercooler · page 2 of 3

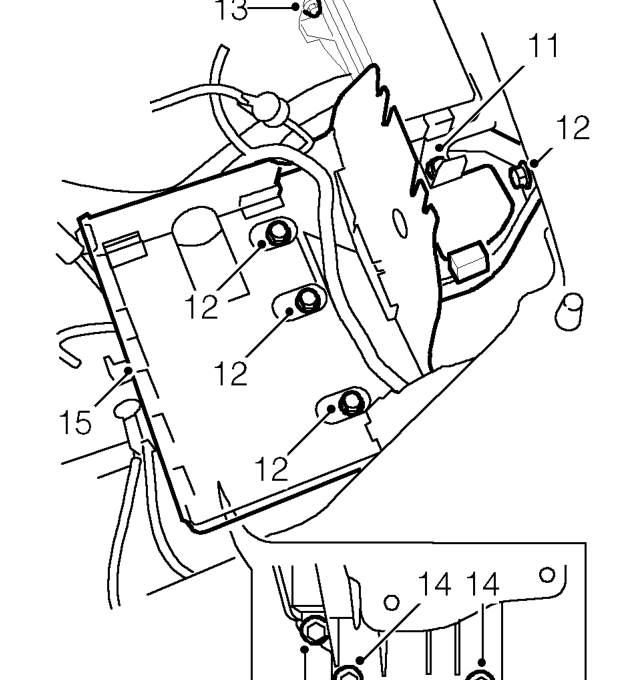

11. Remove bolt securing engine compartment fuse box to battery tray.
12. Remove 4 bolts securing battery tray to body.
13. Remove bolt securing engine compartment fuse box to body and position fuse box aside.
14. Loosen 3 bolts securing battery tray to body.
15. Remove battery tray from vehicle.

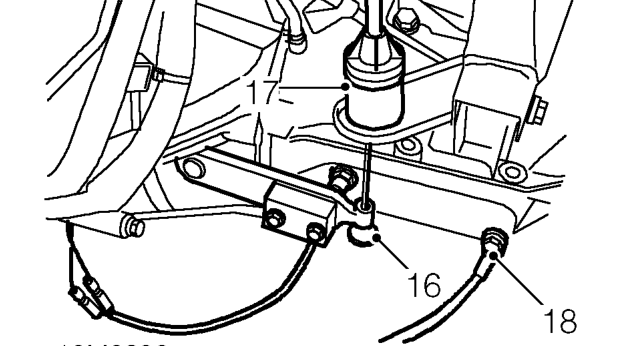

16. Disconnect clutch cable from clutch release lever.
17. Release clutch cable from abutment bracket on gearbox and position aside.
18. Remove bolt securing earth lead to gearbox.

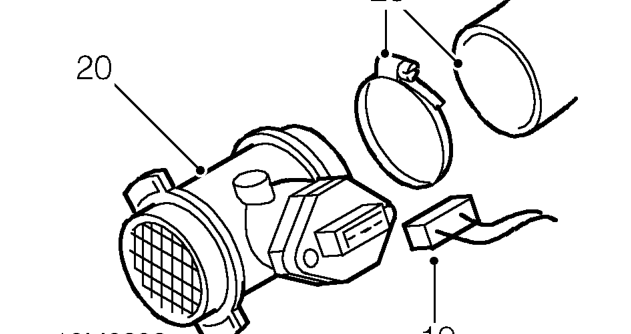

19. Disconnect multiplug from MAF sensor.
20. Loosen clip securing MAF sensor to air intake pipe and remove MAF sensor.
21. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

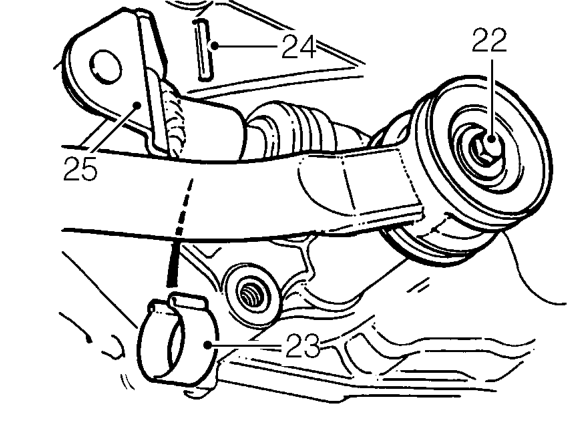

22. Remove bolt and disconnect gear change steady bar from gearbox, collect 2 washers.
23. Remove clip securing selector rod roll pin.
24. Using a suitable punch, drive out roll pin securing selector rod to selector shaft.
25. Release selector rod from selector shaft.
26. Tie selector rod and steady bar aside.
