Rover 200 Workshop Manual (1995-1999)08 · Engine - L Series
08 · Engine

Models with intercooler (page 2 of 3)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - L SeriesModels with intercooler · page 2 of 3
Diagram

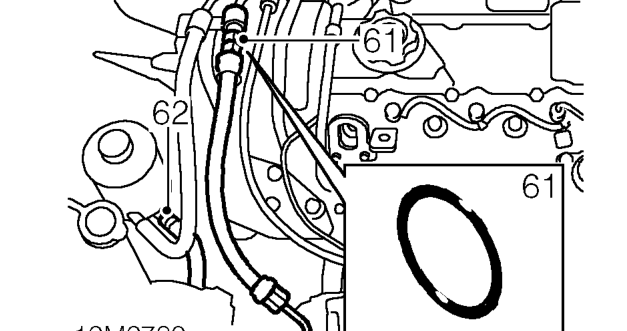

  1. Loosen PAS pump pressure hose to intermediate pipe union, remove and discard ’O’ ring seal.

CAUTION: Use 2 spanners when loosening or tightening unions. Plug the connections to prevent the ingress of dirt.

  1. Release clip and disconnect PAS pump feed hose from PAS fluid reservoir.
Release clip and disconnect PAS pump feed hose from PAS fluid reservoir.

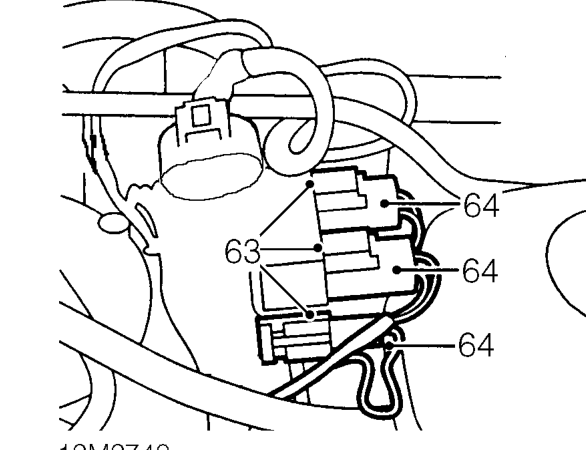

  1. Release 3 multiplugs from mounting bracket on bulkhead.
  2. Disconnect engine harness multiplugs from main harness.
Disconnect engine harness multiplugs from main harness.

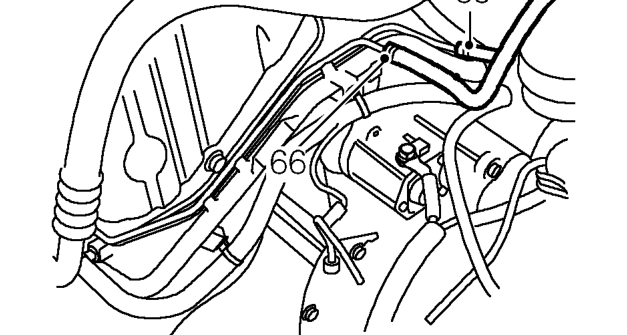

  1. Release clip and disconnect hose from fuel filter.
  2. Release clip and disconnect hose from fuel return pipe.
Release clip and disconnect hose from fuel return pipe.

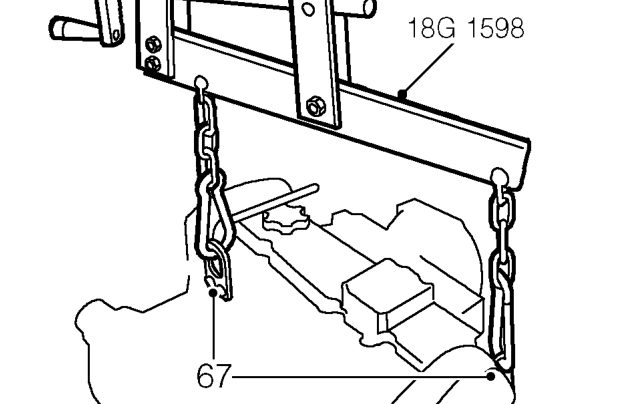

  1. Connect adjustable lifting bracket tool 18G 1598 to engine lifting brackets.
  2. Connect a hoist to lifting bracket tool 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.
