Engine - L SeriesCamshaft timing belt · page 4 of 6

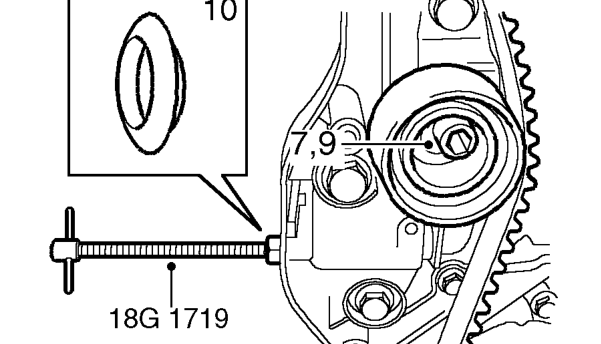

- Loosen tensioner pulley Allen bolt until tensioner moves easily without tipping.
- Release timing belt tensioner plunger using tool 18G 1719.
- Remove tool 18G 1719 from camshaft timing belt tensioner and tighten Allen bolt to 55 Nm.
CAUTION: Do not exceed the specified torque figure.
- Fit timing belt tensioner access plug to back cover.
- Remove Allen bolt access plug from lower cover.
- Fit camshaft timing belt lower cover. See this section.

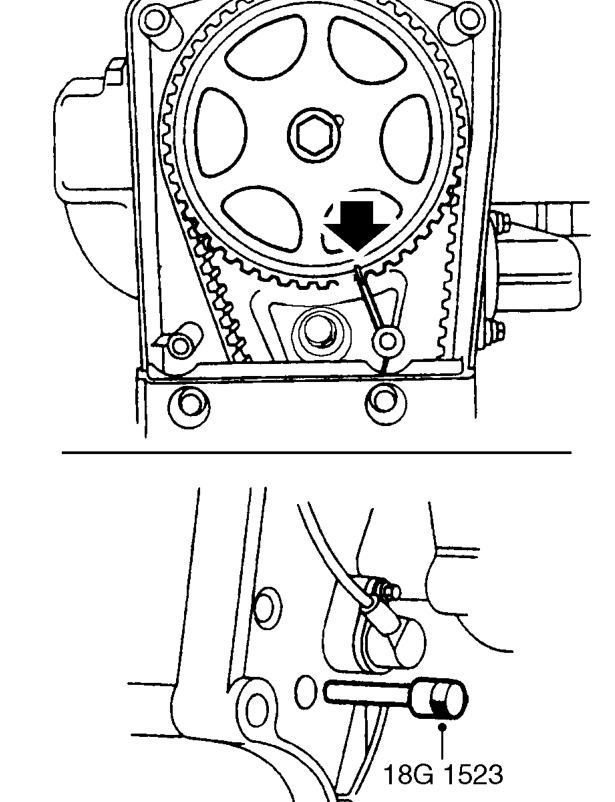

- Remove timing pin 18G 1523 and using a socket and extension bar on crankshaft pulley bolt, rotate crankshaft two revolutions clockwise until timing pin 18G 1523 can be inserted in hole in flywheel.
- Check camshaft gear timing mark is aligned with mark on back cover.
