Rover 200 Workshop Manual (1995-1999)08 · Engine - L Series
08 · Engine

Camshaft timing belt (page 2 of 6)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - L SeriesCamshaft timing belt · page 2 of 6
Diagram

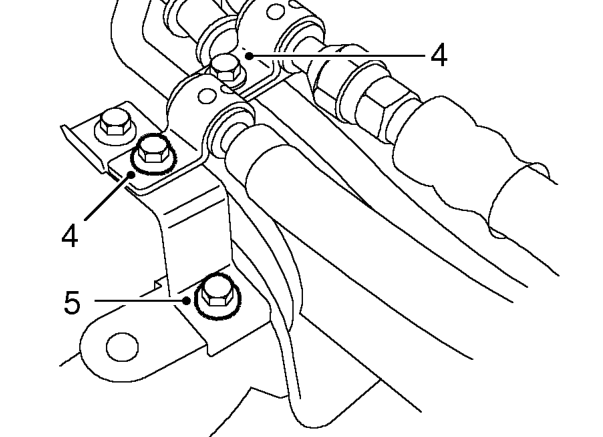

  1. Remove 2 bolts securing PAS pipes to body and move pipes aside.
  2. Remove bolt securing PAS pipe bracket to body and collect bracket.
  3. Remove engine RH mounting. See this section.
Remove engine RH mounting. See this section.

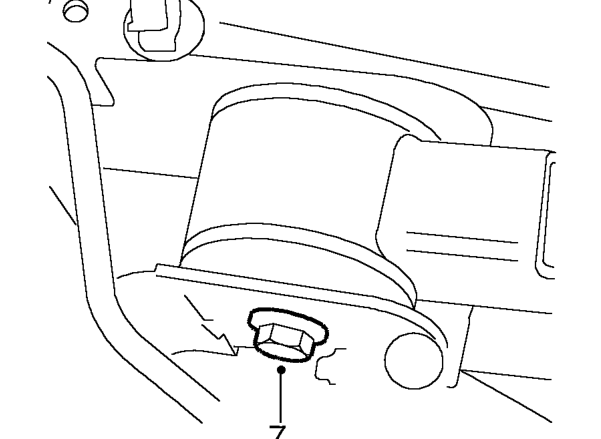

  1. Remove bolt securing steady bar to body and remove steady bar.
Remove bolt securing steady bar to body and remove steady bar.

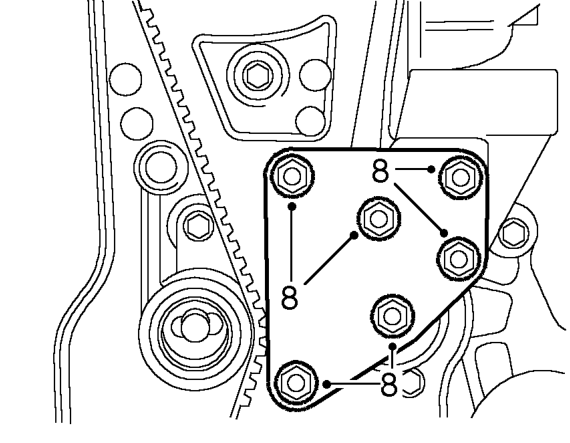

  1. Remove 6 nuts and remove mounting plate.
