Engine - L SeriesCamshaft timing belt · page 5 of 6

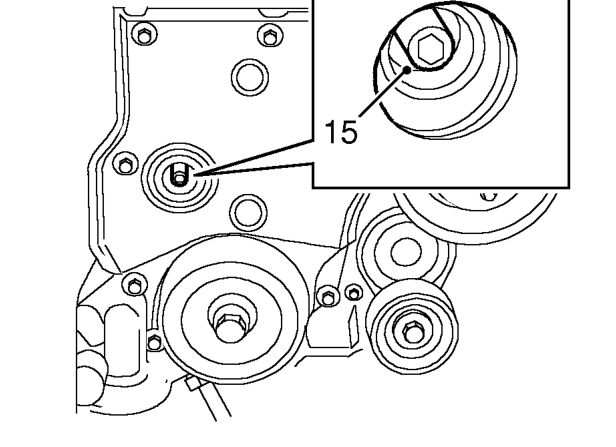

- Loosen Allen bolt securing belt tensioner pulley, allow pulley to react, then tighten Allen bolt to 55 Nm. Fit Allen bolt access plug.
- Remove FIP timing belt cover. See this section.

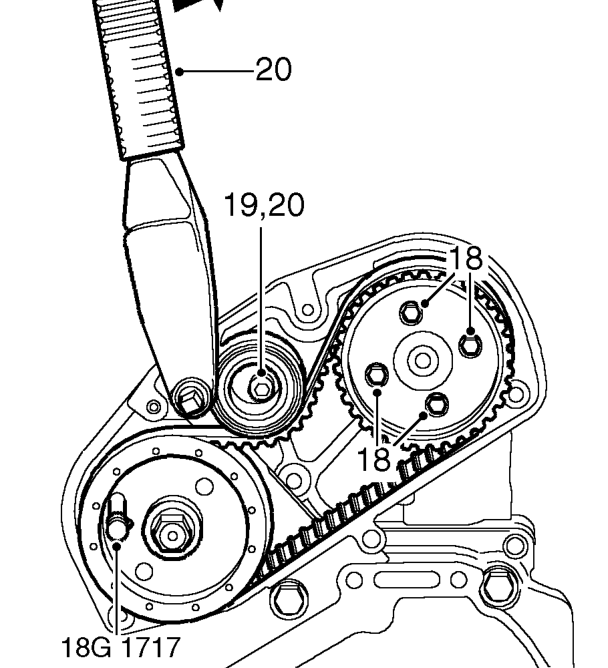

- Insert locking pin 18G 1717 through hole in FIP drive gear and into hole in adapter plate. Locking pin must be a sliding fit. If pin is a tight fit, proceed as follows.
- Loosen 4 bolts securing FIP timing belt drive gear to hub.
- Loosen timing belt tensioner pulley Allen bolt.
- Using a torque wrench fitted to tensioner pulley backplate, apply a clockwise (viewed from rear of engine) torque loading of 6 Nm to drive belt. Maintain loading and tighten tensioner pulley Allen bolt to 44 Nm.
CAUTION: Do not exceed the specified torque figure.
