Replacement (page 2 of 2)

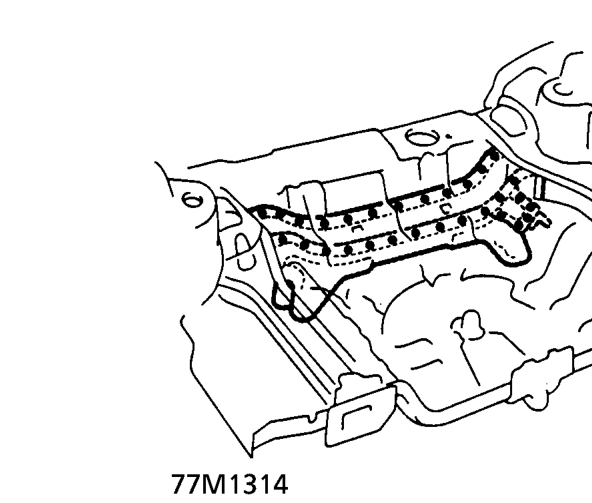

5. Perform the main welding.

WARNING: To prevent eye injury and burns when welding, wear an approved welding helmet, gloves and safety shoes.

• MIG weld the new rear floor cross member from the luggage compartment.

6. Finish the welded area. Roughly grind the welds in the luggage compartment with a disc grinder. Be sure to leave the finishing allowance.

NOTE: Take care not to grind excessively.

7. Apply the sealer.
8. Apply the paint.

WARNING: Ventilate when spraying paint. Most paint contains substances that are harmful if inhaled or swallowed. • Read the paint label before opening paint container. • Avoid contact with the skin. Wear an approved respirator, gloves, eye protection and appropriate clothing when painting. • Paint is flammable. Store it in a safe place, and keep it away from sparks, flames or cigarettes.

9. Apply the undercoat.
10. Install the related parts in the reverse order of removal.
11. Check and clean.

• Check the rear wheel alignment.
• Clean the luggage compartment.
