Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

Crankshaft front oil seal (page 2 of 4)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - dieselCrankshaft front oil seal · page 2 of 4
Diagram

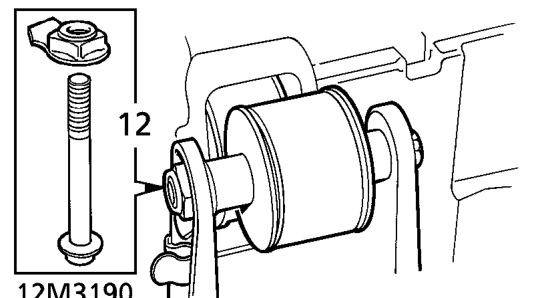

  1. Remove engine rear steady bar through bolt and collect special nut.
Remove engine rear steady bar through bolt and collect special nut.

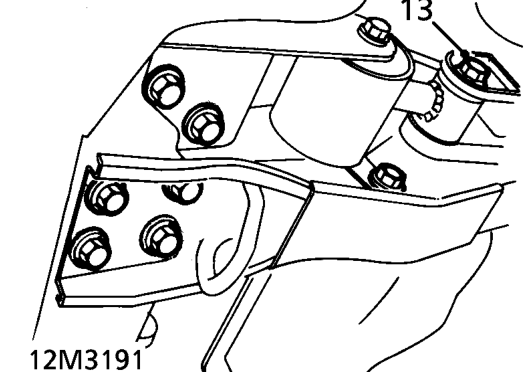

  1. Remove engine front steady bar through bolt.
Remove engine front steady bar through bolt.
  1. Remove 2 bolts securing engine front mounting to crossmember.
Remove 2 bolts securing engine front mounting to crossmember.

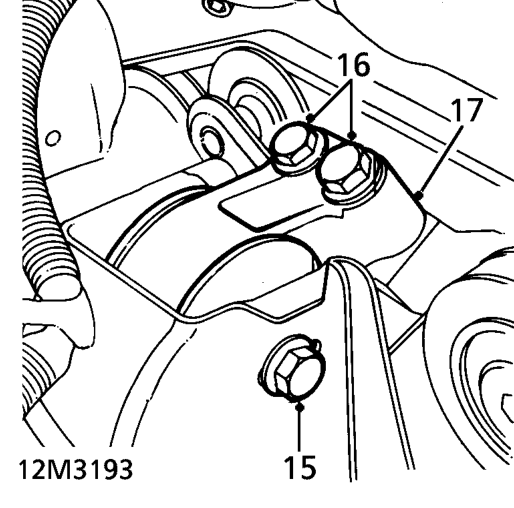

  1. Loosen bolt securing engine RH mounting to body.
  2. Remove 2 bolts securing RH mounting to engine.
  3. Release mounting, move aside and raise engine slightly.
Release mounting, move aside and raise engine slightly.

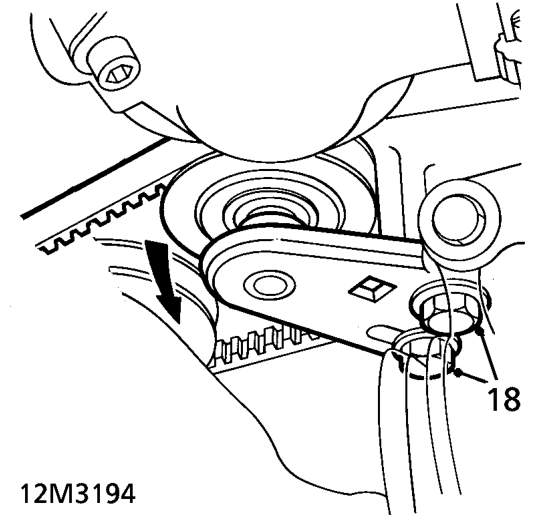

  1. Loosen 2 bolts securing coolant pump jockey arm and release coolant pump drive belt.
