Engine - K16Oil pressure switch · page 2 of 3

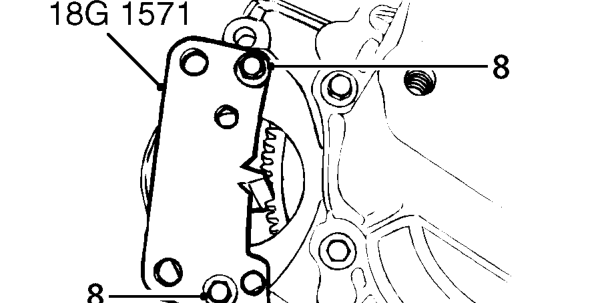

8. Fit flywheel locking tool 18G 1571 to flywheel housing and secure with 2 bolts.
9. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
10. Remove engine RH mounting. See this section.

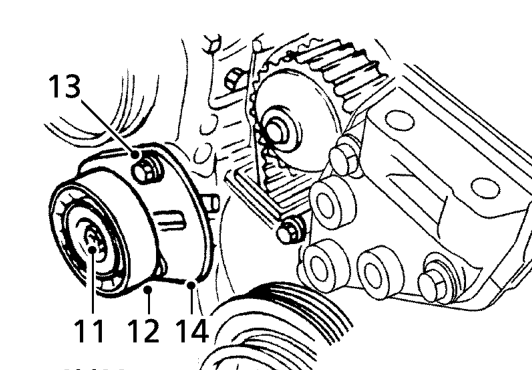

11. Remove nut and collect washer securing power steering pump drive belt tensioner pulley to tension adjuster.
12. Remove power steering pump tensioner pulley.
13. Remove 3 bolts securing drive belt tension adjuster to power steering pump mounting bracket.
14. Remove power steering pump drive belt tension adjuster.

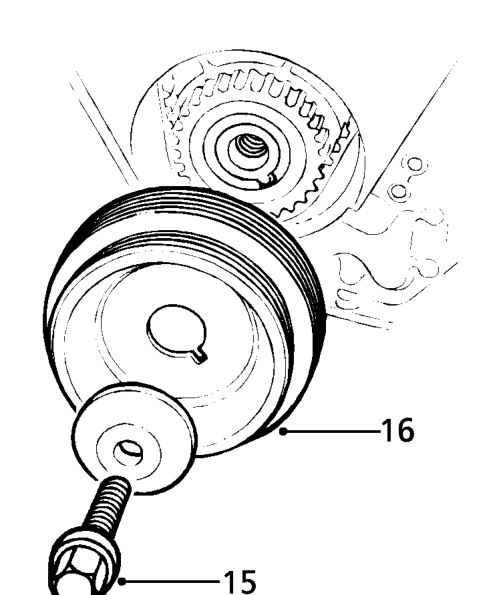

15. Remove bolt securing pulley to crankshaft and collect washer.
16. Remove crankshaft pulley.

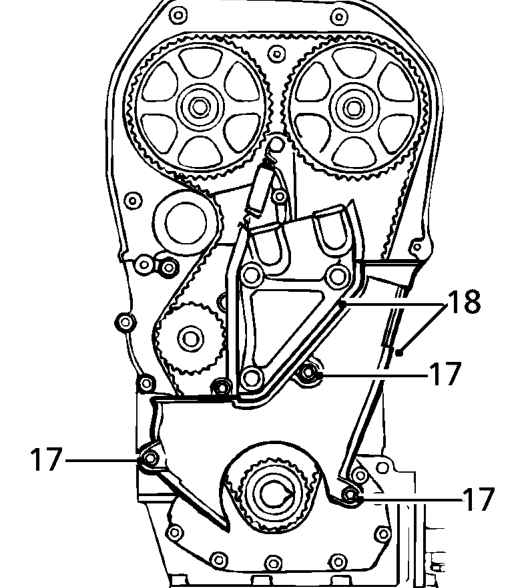

17. Remove 3 bolts securing camshaft timing belt lower cover to engine.
18. Remove camshaft timing belt lower cover and rubber seal.
