Range Rover Classic - Chassis and Body Repair - Central Louvre Panel Fix
76
CHASSIS AND BODY
42
REPAIR
DASH PANEL CENTRAL LOUVRE PANEL
Service repair no - 76.46.42
Remove
1. Disconnect battery negative lead.
2. Remove radio from mounting frame.
See
ELECTRICAL, Repair, Radio
3. Remove clock assembly.
4. Remove drinks tray.
See Drinks Tray
5. Remove heater control unit.
See HEATING
AND VENTILATION, Repair, Heater Control
Unit
6. Remove centre console assembly.
See Centre
Console

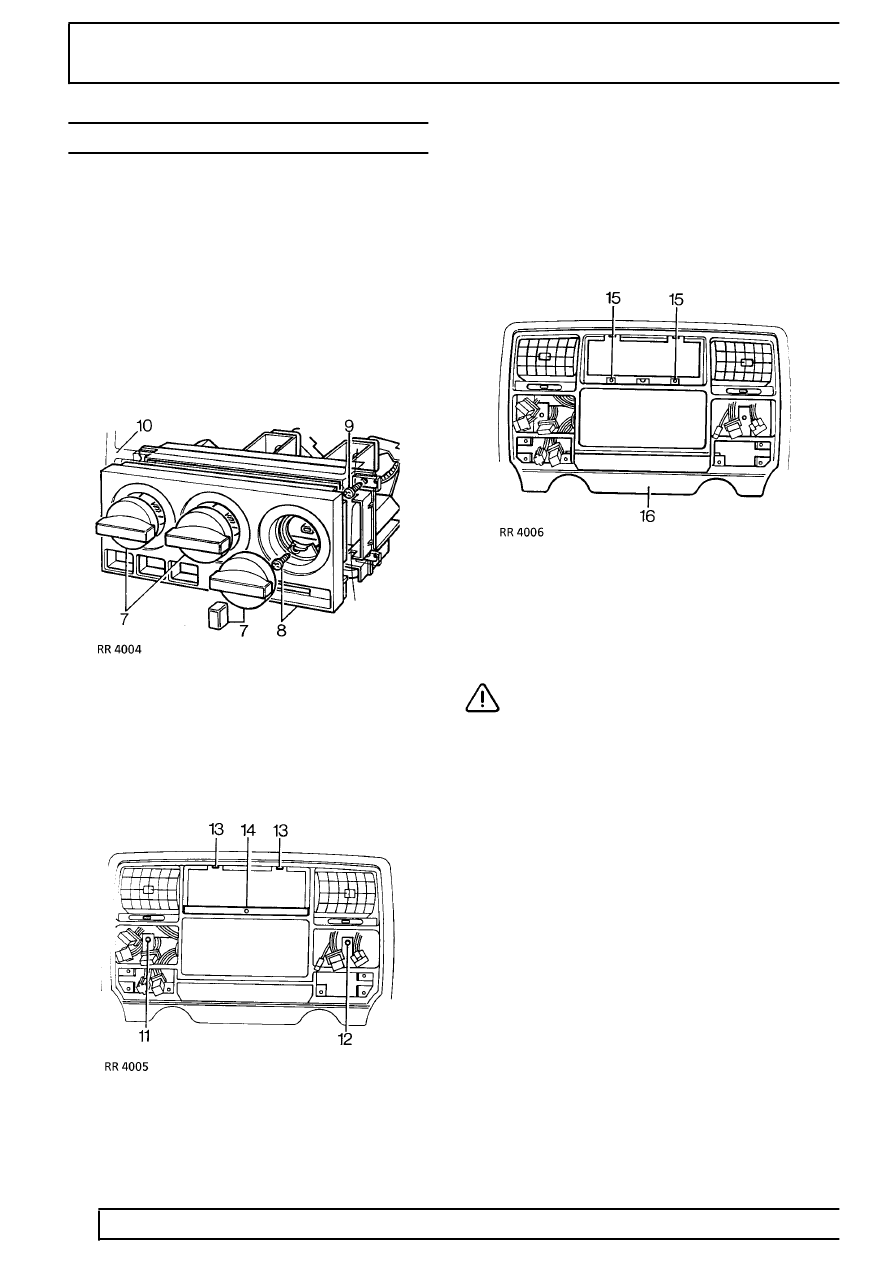

7. Remove 3 heater control knobs and blower
switch knob.
8. Undo 2 screws and remove heater graphic
display panel.
9. Remove 4 screws securing heater control unit to
panel.
10. Push heater control unit through panel.
11. Inside auxiliary switch panel aperture, remove 2
screws securing panel.
12. Inside clock aperture, remove 2 screws securing
panel.
13. Slacken 2 screws securing upper panel.
14. Manoeuvre LED light panel from panel,
disconnect bulb holder and remove light panel.
15. Remove 2 screws securing louvre panel.
16. Remove louvre panel from dash panel.
Refit
CAUTION: When refitting avoid trapping of
electrical wiring.
17. Reverse removal procedure. Place louvre panel
in position, ensure wiring looms are free and
multiplugs and connectors are through their
apertures
18. Check function of all switches and controls.
